Description
Overview

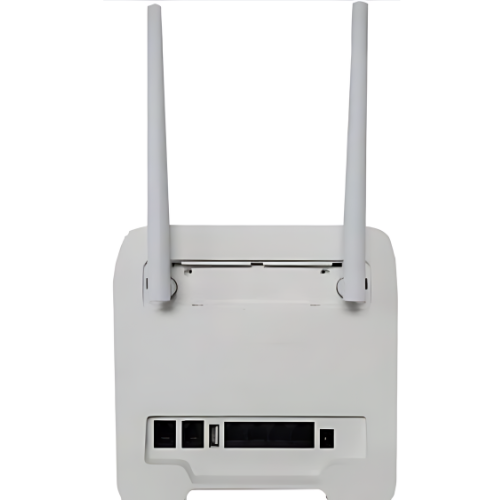

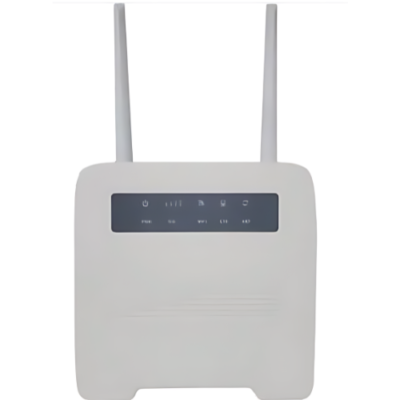

Asset Track Pro Indoor Customer Premise Equipment (CPE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed LTE signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the CPE simultaneously.
Technical Specifications
| Item | Description | ||
| Wireless Access Technology | TD LTE or FDD or WCDMA or TD SCDMA or GSM or GPRS or EDGE or EGPRS | ||
| Bands | CE42A EE or CE42A IE FDD B1 or B2 or B3 or B5 or B7 or B8 or B20 TDD B34 or B38 or B39 or B40 or B41 TDS B34 or B39 WCDMA B1 or B2 or B5 or B8 GSM 850 or 900 or 1800 or 1900CE42A EA or CE42A IA FDD B2 or B3 or B4or B5 or B7 or B8 or B28A or B28B or B66 WCDMA B2 or B4 or B5 or B8 GSM 850 or 900 or 1800 or 1900 CE42A EP or CE42A IP |
||
| Peak Rate | LTE FDD Max 150Mbps (DL) or Max 50Mbps (UL) LTE TDD Max 130Mbps (DL) or Min 35Mbps (UL) WCDMA Max 21Mbps (DL) or Max 5.76Mbps (UL) TD-SCDMA Max 4.2Mbps (DL) or Max 2.2Mbps (UL) EDGE Max 236.8kbps (DL) or Max 118kbps (UL) GPRS Max 85.6kbps (DL) or Max 85.6kbps (UL) GSM Max 9.6kbps (DL) or Max 2.7kbps (UL) |
||
| TXRX | 1T2R | ||
| Receive Sensitivity | Compliance with 3GPP standard | ||
| MAX Output Power | LTE FDD 23dBm ±2 dB LTE TDD 23dBm±2dB WCDMA 24dBm+1dB or 3dB TD SCDMA 24dBm+1dBor 3dB GSM B5 or 8 +33 ±2dBm (Power class 4) GSM B2 or 3 +30 ±2dBm (Power class 1) |
||
| Antenna Type | External Antenna | ||
| Antenna Gain | 3 to 5dBi (External Antenna) | ||
| Standard | IEEE 802.11b or g or n | ||
| Channel Bandwidth | 20MHz 40MHz | ||
| Frequency | 2.4G | ||
| TXRX | 2T2R | ||
| MIMO | DL 2 X 2 | ||
| Peak Rate | 802.11b 11Mbps
802.11g 54Mbps 802.11n 300Mbps |
||
| Modulation | DSSS or CCK OFDM | ||
| Receive Sensitivity | -85dBm in 802.11b
-70dBm in 802.11g -66dBm in 802.11n |
||
| MAX Output Power | 17dBm in 802.11b
14dBm in 802.11g 13dBm in 802.11n |
||
| Antenna Type | External Antenna | ||
| Antenna Gain | 5dBi | ||
| Active User | 32 | ||
