Description
Overview

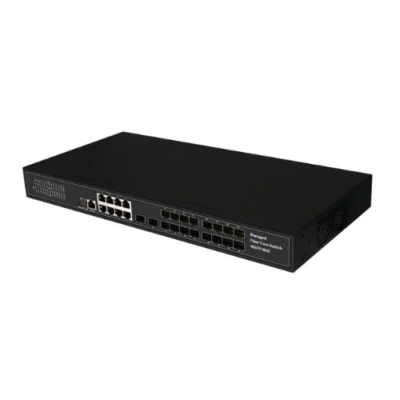

The High-Performance 26-Port Managed Fiber Optic Switch 2024-Asset Track Pro is designed to deliver seamless gigabit network connectivity. It features 18 Gigabit SFP ports and 8 RJ45 Ethernet ports, ensuring high-speed data transmission and reliable network management. With advanced VLAN, QoS, and security functions, this switch is ideal for small-to-medium enterprises, schools, and core community networks.
Features
- 18 Gigabit SFP ports and 8 Gigabit RJ45 ports
- Switch capacity: 128Gbps with 40.32Mpps packet forwarding
- Supports IEEE 802.1Q VLAN and port-based VLAN
- Advanced QoS strategies with 3 priority modes
- Comprehensive security: ARP attack protection, DoS defense, and MAC binding
- Supports SNMP (v1/v2/v3), Telnet, SSH, and Web management
- Energy-efficient design with power consumption less than 35W
Application
- Enterprise networks requiring high-speed fiber connectivity
- Core networking for schools and community centers
- Secure data transmission for small-to-medium businesses
- IP surveillance systems and CCTV networks
- ISP backbone networks
Technical Specifications
| Attribute | Specification |
| Copper Ports | 8 x 10/100/1000BASE-TX RJ45 |
| SFP Ports | 18 x 1000BASE-X SFP |
| Switch Capacity | 128 Gbps |
| Packet Forwarding Rate | 40.32 Mpps |
| MAC Address Table | 8K entries |
| Flash | 16 MB |
| RAM | 128 MB |
| VLAN Support | IEEE 802.1Q (30 VLAN groups) |
| QoS | Port-based, IEEE 802.1p, DSCP |
| Management | Web, CLI, Telnet, SSH, SNMP |
| Power Input | 100 to 265 V AC, 50 or 60 Hz |
| Power Consumption | Less than 35 W |
| Dimensions (W x D x H) | 17.3 in x 8.3 in x 1.8 in (44 cm x 21 cm x 4.5 cm) |
| Weight | 8.6 lb (3.9 kg) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Compliance | FCC Part 15, CE, RoHS |
