Description
Technical Specifications
| Processor | Up to two 4th Generation Xeon Scalable processor, with up to 32 cores per processor and optional Intel QuickAssist Technology |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT per s.
Supports registered ECC DDR5 DIMMs only |
| Storage controllers | Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 X M.2 NVMe SSD drives, or USB External HBA (non-RAID): PERC HBA355e Software RAID: S160 (for NVMe drives only |
| Drive Bays | Front bays:
Up to 12 X (8.89 cm) 3.5 – inch SAS or SATA HDD drives, max 180 TB Up to 8 X (8.89 cm) 3.5 – inch SAS or SATA HDD drives, max 120 TB Up to 8 X (8.89 cm) 3.5 – inch SAS or SATA HDD + 8 X (6.65 cm) 2.5 – inch NVMe SSD drives, max 240 TB Up to 8 X (6.65 cm) 2.5 – inch SAS or SATA HDD drives, max 120 TB Up to 16 X (6.65 cm) 2.5 – inch SAS or SATA HDD drives, max 240 TB Up to 24 X (6.65 cm) 2.5 – inch SAS or SATA HDD drives, max 360 TB |
| Power Supplies | 2800 W Titanium 200 to 240 VAC or 2800 W 240 VDC, hot swap redundant
2400 W Platinum 100 to 240 VAC or 2400 W 240 VDC, hot swap redundant 1800 W Titanium 200 to 240 VAC or 1800 W 240 VDC, hot swap redundant 1400 W Titanium 277 VAC or 1400 W 336 VDC, hot swap redundant 1400 W Platinum 100 to 240 VAC or 1400 W 240 VDC, hot swap redundant 1100 W Titanium 100 to 240 VAC or 1100 W 240 VDC, hot swap redundant 1100 LVDC -48 to (-60) VDC, hot swap redundant 800 W Platinum 100 to 240 VAC or 800 W 240 VDC, hot swap redundant 700 W Titanium 200 to 240 VAC or 700 W 240 VDC, hot swap redundant 600 W Platinum 100 to 240 VAC or 600 W 240 VDC, hot swap redundant |
| Cooling options | Air cooling |
| Fans | Up to eight Standard (STD) fans or High performance (HPR) fans |
| Operating System and Hypervisor | Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |

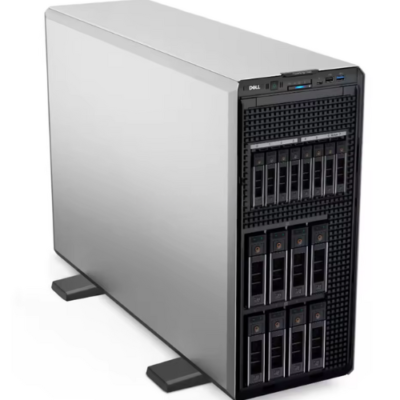

| Form Factor | 4.5U tower server |
| Embedded Management | iDRAC9 , iDRAC Direct , iDRAC Service Module , iDRAC RESTful with Redfish , Quick Sync 2 wireless module |
| Bezel | Optional security bezel |
| Open Manage Software | Open Manage Enterprise, Open Manage Power Manager plugin, Open Manage Service plugin, Open Manage Update |
| Mobility | Open Manage Mobile |
| Integrations and Connections | BMC Truesight, Microsoft System Center, OpenManage Integration with ServiceNow, Red Hat Ansible Modules , Terraform Providers , VMware vCenter and vRealize Operations Manage |
| Security | Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt) , Secure Boot, Secure Erase, Secured Component Verification (Hardware integrity check), Silicon Root of Trust , System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 X 1GbE LOM on Planar |
| Network Options | 1 x OCP x8 card 3.0
Note: The system allows both LOM on planar and OCP card to be installed on the system. |
| GPU Options | Up to 2 X 300 W DW or 6 X 75 W SW |
| PCle | Up to six PCIe slots:
Slot 1: X 16 Gen5 Full height, Full length Slot 2: X 16 Gen5 Full height, Full length Slot 3: X 16 Gen4 Full height, Half length Slot 4: X 16 Gen4 Full height, Half length Slot 5: X 16 (x8 lanes) Gen4 Full height, Half length Slot 6: X 16 Gen4 Full height, Half length |
| Dimensions | Height — (464.0 mm) 18.26 in (with feet) (508.8 mm) 20.03 in (with caster wheels) (446.0 mm) 17.60 in (without feet)
Width — (200.0 mm) 7.87 in Depth — (678.2 mm) 26.70 in) (with bezel) (660.6 mm) 26 in (without bezel) |
