Description
Overview

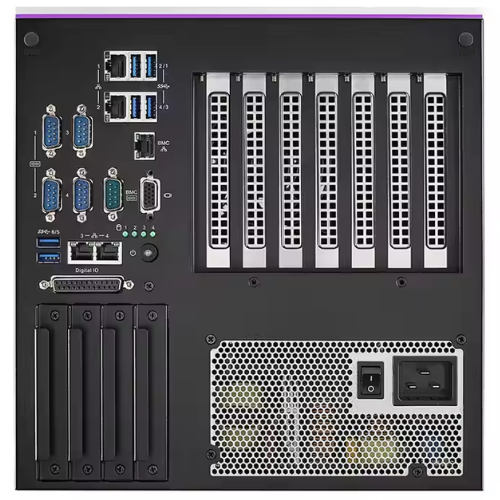

Asset Track Pro’s High-Performance AI Edge Server with Intel Xeon D-1700 series processors, offering robust computing capabilities for demanding AI workloads. It features 4x DDR4 SO-DIMM slots supporting ECC and non-ECC memory up to 128GB, ensuring stability and efficiency. This device supports dual PCIe x16 350W high-performance GPU cards, making it ideal for AI and machine learning applications. With rich storage options, it accommodates 4 × 2.5″ SATAIII SSDs with RAID 0/1 configurations. It also includes PCIe x1/x4/x16, M.2 B Key, and E Key extensions for flexible expansion. Built with a 1200W power supply, this product ensures reliable performance while supporting IPMI 2.0 management for enhanced security and system reliability.
Technical Specifications
| CPU | Intel Xeon D-1700 series, supports dual-graphics AI edge servers |
| Core Number | Up to 16C |
| Max Speed | 3.1 to 3.5 GHz |
| CPU TDP | 50 to 67 W |
| Smart Cache | 10 to 15 MB |
| BIOS | AMI EFI 512 Mbit |
| Max Capacity | Up to 128 GB |
| Technology | 4 x DDR4 SO-DIMM slots (ECC/nonECC) |
| Socket | 4 x 2666/2933 MHz DDR4 ECC/nonECC SO-DIMM |
| Controller | Intel UHD Graphics |
| Graphic Engine | DirectX 12, OpenGL 4.5, OpenCL 2.1 |
| Output | 1 x VGA via Aspeed AST2500 BMC |
| M.2 | 2 |
| PCI Express x4 | 1 |
| PCI Express x1 | 1 |
| PCI Express x16 | 2 |
| Controller | 4 x 10/100/1000 Mbps Intel i210 GbE (Wake-on-LAN) |
| Connector | RJ45 |
| SATA | 4 x SATAIII (600 MB/s) |
| GPIO | 8-bit |
| USB 3.2 | 6 |
| COM Port | 4 x RS-232/422/485 (automatic flow control) |
| Power Type | 100 to 240 V AC |
| Power Consumption | Built-in 1200 W power supply |
| Storage Temperature | -40 to 185 °F (-40 to 85 °C) |
| Operating Temperature | 14 to 122 °F (-10 to 50 °C) w/ airflow 0.7 m/s |
| Vibration Resistance | Yes |
| Weight | 23.37 lb (10.6 kg) |
| Size | 10.24 x 10.63 x 15.71 in (260 x 270 x 399 mm) |
