Description
Overview

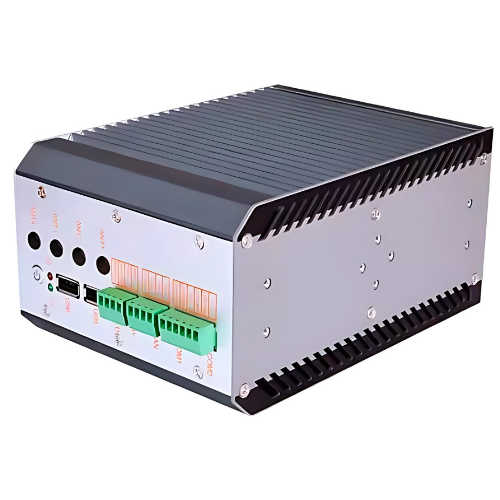

Powerful edge PC with Intel Core Ultra, DDR5, dual LAN, 4K display, multiple I/O, 4G/5G expansion, TPM 2.0 option, and wide-range DC power input.
Features
- Fan and fan-less option available
- Dual channel DDR4 up to 64GB memory
- Modula and cable free design
Technical Specifications
| Processor | Intel core Ultra-U or H series processorUltra-125U or Ultra-155U or Ultra-125H or Ultra-155H or Ultra-185H |
| Ram | 2 x DDR5 SO-DlMM with a maximum of 96GB |
| Ram Socket | Onboard 2G or 4G or 8G memory, add a Rma socket, max to be 16G Ram |
| Front Panel Interface | 3 x DB9 COM(RS232) |
| Side Panel Interface | 1 x 9 PIN Phoenix terminal (8 channels G Plo and ground) 1 x HD interface, support 4K,1 x DP interface, support 4K 2 x RJ 45 port (1 i 226-V, 1 i226-LM, AMT support) 4 x USB (3 x USB3.0,1 x USB2.0),1 x TYPE-C (support 4K) 1 x 2-in-1 audio,1 x DC (5525) interface with thread 1 x On and off machine button,1 x HDD led,1 x POWER led |
| Expand Functions | TPM 2.0 is optional, default No 1 x M.2 M-Key 2280 (PCle 3.0 x4 or SATA 3.0 protocol), 1 x 2.5-inch S ATA hard drive 1 x M.2 KEY-E (PCle + USB WIFl module) 1 x M.2 KEY-B (PCle+ USB3.0.4G or 5G module).1 x SlM card slot |
| Processor | Intel core Ultra-U or H series processorUltra-125U or Ultra-155U or Ultra-125H or Ultra-155H or Ultra-185H |
| Ram | 2 x DDR5 SO-DlMM with a maximum of 96GB |
| Ram Socket | Onboard 2G or 4G or 8G memory, add a Rma socket, max to be 16G Ram |
| Front Panel Interface | 3 x DB9 COM(RS232) |
