Description
Features
- Intel low power embedded industrial host
- Support DDR4 notebook memory
- VGA + HDMI support dual screen synchronization/asynchrony
- Support 4 COM (COM1/2:RS232/RS422/RS485; COM3/4:RS232)
- Support 4 USB 2.0 +2 USB 3.0
- Support 6 x LAN Port (Include 4 x POE port)
Technical Specifications
| CPU/CHIP | Onboard Intel Tiger Lake i5-1135G7 CPU, support 11th generation embedded platform Celeron 6305, Pentium 7505, Core i3/i5/ i7 series |
| Power | 12 V to 36V DC in |
| RAM | 2 x SO-DIMM For DDR4 2400 MHz Max 64GB |
| SSD | 1 x M.2 Socket (2242/2280, SATA/NVMe, Jumper, Default VMe ) 1 x SATAIII |
| DISPLAY | 1 x HDMI 2.0 4096 x 2304 at 60 Hz（EXT） 1 x CRT 2560 x 1600 at 60 Hz（Hi-EXT, Option） 1 x EDP：4096 x 2304 at 60 Hz (INT) 1 x LVDS：2560 x 1600 at 60 Hz |
| LAN | 10 Mbps / 100 Mbps /1000 Mbps |
| 4 x Intel I211AT（PoE PS）+ 2 x Intel I211AT GIGALAN | |
| Audio | Front_FP（Support ALC888S/ALC897/ALC662）+ 3W Speaker |

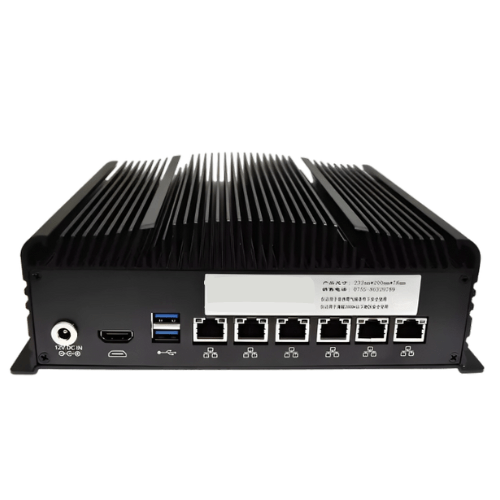

| Front I/O | 1 x HDMI 2 x USB3.1 6 x RJ45(4 x PoE, ASM1806 FOR 4 x LAN, 2 x Intel PCI-E) |
| Expansion Plug | 1 x M.2 (B key 3042/3052 for 4G/5G) 1 x M.2 (E key 2230 PCI-E,USB 2.0） 1 x CAN（F81251） 1 x SIM Card hold (Co-lay FPC Connector) 1 x CPU FAN (Support smart FAN) 1 x SYSTEM FAN（W/O Smart FAN） 1 x AT_Mode 1 x FP_PW (PS ON) 1 x CRT（15pin Header, Option） |
| USB Port | 4 x USB 2.0+2 x USB 3.0 |
| Serial Port | 4 x COM port（COM1/2RS232/422/485; COM3/4RS232） |
| PS/2 | N/A |
| GPIO | 16 Bit |
| Fan Interface | CPU FAN1, SYS FAN1 |
| Button | Power button and reset button |
| Indicator Light | Power light, hard disk light |
| Power Supply | 9 to 36 DC, DC-025M with threaded lock |
| Dimensions | 9.13 in × 7.88 in × 3.07 in (232 mm x 200 mm x 78 mm) |
