Description
Technical Specifications
| CPU | Intel Core i3 4030U (1.90 GHz) or i5 4200U (1.60 GHz) or i7 4500U (1.80 GHz), Dual Core |
| RAM | 2*DDR3 SO-DIMM, Supports 4 GB/8 GB/16 GB |
| Storage | 1MSATA SSD (Supports 128 GB/256 GB/512 GB/1 TB) / 1SATA 2.5-inch HDD or SSD |
| Graphics | Intel HD Graphics |
| Display Ports | HDMI and VGA |
| I/O Ports | 8*USB 2*Network interface HD+VGA Display Interface 6*COM (4*RS232/485) 1*GPIO 1*PS/2 1*SIM card slot 1*Audio Interface 2*WiFi antenna interface 1*Power switch,1*power interface |
| Network | 2*RTL8111G/H gigabit network card Support 2.4G/5G WIFI communication A SIM card holder, Support 4G module |
| Audio | Realtek Sound Card |
| Supported OS | Windows 7/8/10/11, Linux, CentOS, Pfsense |
| Power Consumption | CPU: 15 W, Total PC: 25 W |
| Cooling System | Fanless Passive Cooling |
| Material | High-quality aluminum alloy case |
| BIOS | Support auto power-on/network wake-up/diskless start-up |
| Installation | Desktop, Wall-mounted, Embedded |
| Power Supply | External adapter, Input AC 100V to 240V, Output DC 12V |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Relative Humidity | 10% to 90% (non-condensing) |

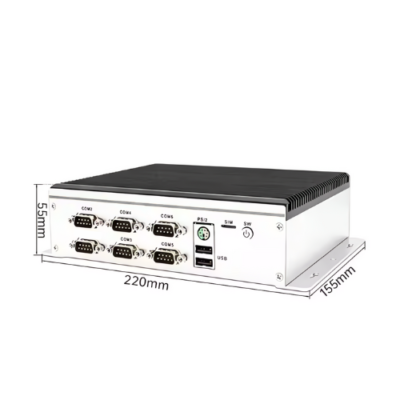

| Product Size | 8.66 in x 6.10 in x 2.17 in (220 mm x 155 mm x 55 mm) |
