Description
Features
- Centimetre-level RTK positioning with multi-constellation GNSS (GPS, Beidou, GLONASS, Galileo)
- 1-inch HD capacitive display with glove and water-operation support
- 8-core 2.7 GHz processor with 4 GB RAM and 128 GB storage (expandable)
- 5G full-network support, dual-band Wi-Fi and Bluetooth 5.0 for real-time data transfer
- IP68 waterproof, dustproof rating and drop-resilient design for harsh field environments
- 10000 mAh battery with >12 hours typical runtime and 30W Type-C fast charging (POGOPIN charging supported)
- Extensive I/O: dual nano-SIM, TF card, Type-C, USB, external RTK antenna and optional PSAM, DMR interfaces
- Programmable function keys, built-in RTC and noise-reduction audio for field workflows
Technical Specifications
| Processor | 8-core 2.7 GHz (supplier-specified mobile SoC) |
| Operating System | Android 13 (HarmonyOS customization optional) |
| Memory (RAM) | 4 GB (optional 6 GB, 8 GB variants available) |
| Storage (ROM) | 128 GB (optional 128 GB, 256 GB variants available) |
| Expandable Storage | MicroSD, TF card, up to 512 GB |

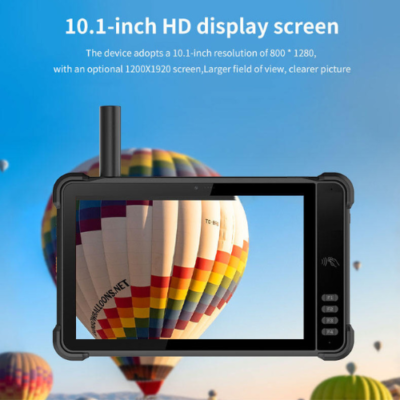

| Display | 10.1-inch IPS capacitive touchscreen |
| Display Resolution | 800 px × 1280 px (optional 1200 px × 1920 px variant) |
| Touch Capabilities | Multi-touch, glove touch, water operation. passive pen support |
| Rear Camera | 13.1 MP (auto-focus with flash) |
| Front Camera | 5 MP (optional variants) |
| Audio | Main MIC ×1, noise reduction and echo cancellation, optional 4 W speaker |
| Batteries | 10000 mAh polymer lithium |
| Charging | Type-C 30 W PD fast charge, POGO-PIN charging supported, 3 to 4 hours charge time |
| 5G / Cellular | 5G NR and LTE bands (full-network support per region),GSM, WCDMA supported |
| Wi-Fi | IEEE 802.11 a b g n ac; dual-band 2.4 GHz and 5 GHz |
| Bluetooth | Bluetooth 5.0 (BLE) |
| GNSS | GPS, GLONASS, Galileo, Beidou, L1 support, external RTK antenna port |
| RTK — GNSS Tracking Channels | 1408 channels |
| RTK — PVT Update Rate | Up to 10 Hz |
| RTK — RTK Update Rate | Up to 5 Hz |
| RTK — Positioning Accuracy | GNSS: 8.20 ft (2.5 m) CEP, D-GNSS: <3.28 ft (<1.0 m) CEP |
| RTK — RTK Accuracy | Horizontal: 0.59 in (1.5 cm) + 1 ppm, Vertical: 2.56 in (6.5 cm) + 1 ppm |
| RTK — Time & Speed Accuracy | GNSS speed accuracy 0.32 ft/s (0.10 m/s) CEP, 1PPS: 20 ns |
| RTK — TTFF | Hot start: 2 s, Cold start: 24 s, RTK convergence: <10 s |
| RTK — Sensitivity | Cold start: −148 dBm, Hot start: −158 dBm, Tracking: −162 dBm |
| GNSS Limits | Max speed 1689.63 ft/s (515 m/s), Max height 59055.12 ft (18,000 m) |
| Interfaces | USB Type-C, USB-A (where configured), 4-pin charging, external antenna ports, PSAM (optional) |
| SIM & Card Slots | Dual nano-SIM support; TF card slot; optional PSAM |
| Special I/O | Optional DMR, RTK antenna interface; optional M6, M12 expansion interfaces |
| Function Keys & Indicators | Power, volume, scan key, 4 programmable function keys, RGB lamps, vibration |
| Sensors | Light, proximity, gravity, optional gyroscope, barometer, magnetometer |
| RTC | Built-in RTC battery (coin cell) |
| Environmental | Designed for vehicle, field vibration and shock profiles |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Drop Resistance | Multiple drops from 3.94 ft (1.2 m) cement floor |
| ESD Immunity | ± 15 kV (air), ± 8 kV (contact) |
| Protection Rating | IP68 (waterproof and dustproof) |
| Development Support | Java, Android standard interfaces and SDK and APIs |
| Operating Temperature | −4 °F to 131 °F (−20 °C to 55 °C) |
| Storage Temperature | −40 °F to 158 °F (−40 °C to 70 °C) |
| Dimensions (Product) | 11.44 in × 7.19 in × 0.73 in (290.6 × 182.5 × 18.5 mm) |
| Weight (Product Only) | 2.12 lb (960 g) |
