Description
Overview

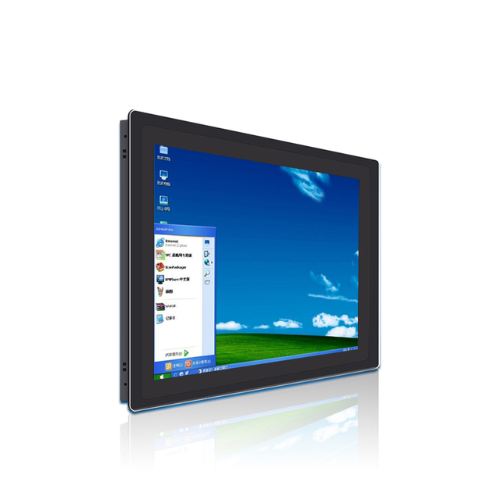

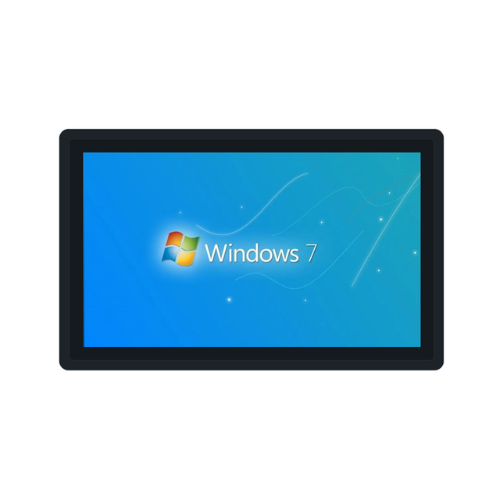

High-performance 15.6-inch industrial panel PC with waterproof capacitive touch, 10th-gen multicore CPU, up to 32 GB RAM, M.2 and SATA storage for industrial use.
Features
- 6-inch Full HD (1920 × 1080 px) display with 10-point projective capacitive touch
- High-performance 10th-generation-class multicore processor and integrated graphics
- Dual DDR4 memory slots supporting up to 32 GB RAM and flexible M.2 plus 2.5-inch SATA storage
- Fanless passive cooling for reliable 24×7 operation in industrial environments
- Multiple I/O: configurable USB ports, HD and VGA display outputs, gigabit LAN and audio interfaces
- Wide operating temperature and non-condensing humidity range for harsh conditions
- Flexible installation — wall, embedded or desktop mounting options
- Robust construction with reinforced chassis and long-life LED backlight
Technical Specifications
| Panel Size | 15.6-inch |
| Display Ratio | 16:9 |
| Resolution | 1920 px × 1080 px |
| Brightness | 300 cd per m² |
| Contrast | 1000 : 1 |
| View Angle | Right 70° , Left 70° , Up 60° , Down 60° |
| Backlight | LED |
| Backlight Life | 50,000 hours |
| Touchscreen Type | 10-point projective capacitive touch |
| Touch Interface | USB |
| Touch Response Time | < 5 ms |
| CPU | 10th-generation-class high-performance multicore processor |
| GPU | Integrated UHD-class graphics |
| RAM | 2 × DDR4 slots, up to 32 GB |
| Memory Options | 4 GB or 8 GB or 16 GB or 32 GB (optional) |
| Storage Interfaces | M.2 SSD interface and 2.5-inch SATA interface |
| Storage Options | 128 GB or 256 GB or 528 GB or 1 TB (optional) |
| Network | Gigabit wired network interface |
| WLAN | 2 × Wi-Fi antenna interfaces (optional) |
| I/O — USB | 4 or 6 USB ports (depending on configuration) |
| I/O — Display | HD and VGA display interfaces |
| I/O — Audio | 2 audio interfaces; 3.5 mm headphone jack |
| Power Switch / Interface | 1 × power switch; main power interface |
| Supported OS | Windows 10 and 11, Linux, CentOS, pfSense |
| Cooling System | Fanless passive cooling |
| Installation | Wall mount, embedded or desktop mount |
| Power Supply (Input) | AC 100 V to 240 V (external adapter) |
| Power Supply (Output) | DC 12 V or 19 V (depending on configuration) |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Dimensions (Package) | 20.87 in × 14.37 in × 6.10 in (53 cm × 36.5 cm × 15.5 cm) |
| Weight (Package) | 14.77 lb (6.700 kg) |
