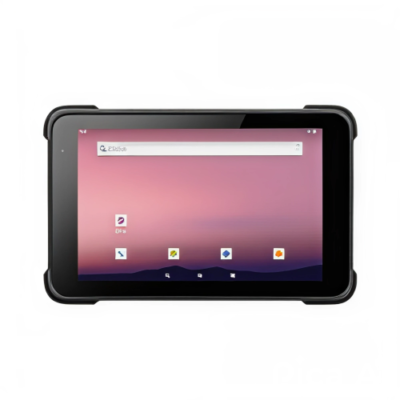

High Precision 8-Inch Beidou Industrial Tablet With GPS and Shock Protection - Asset Track Pro

High Precision 8-Inch Beidou Industrial Tablet With GPS and Shock Protection – Asset Track Pro

Durable 8-inch industrial GNSS tablet with Beidou positioning, octa-core 2.0 GHz, 8GB RAM, 128GB storage and 8500 mAh battery for field use.

SKU: ATPHPITB-104 Category:

Description

Features

  • High-precision multi-constellation GNSS including Beidou for accurate outdoor positioning
  • Sunlight-readable 8-inch IPS display with 10-point capacitive touch and handwriting support
  • Flagship octa-core 2.0 GHz processor with 8 GB RAM and 128 GB internal storage (microSD expansion)
  • Robust mechanical design — waterproof, dustproof and drop-resistant for industrial environments
  • Large 8500 mAh battery with fast charging and pogo-pin charging support for extended shifts
  • Full mobile connectivity: 4G LTE, dual-band Wi-Fi and Bluetooth plus SIM and TF card slots
  • Rich I/O: USB 2.0, USB Type-C (data, OTG), SIM slot, TF slot and optional barcode,NFC accessories
  • Integrated front and rear cameras and optional data-collection modules (barcode, NFC)



Technical Specifications

Screen Size 8-inch IPS
Display Resolution 800 px × 1280 px
Brightness 500 cd per m² (supplier spec)
Touchscreen Type 10-point capacitive, handwriting supported; hardness > 7H
Processor Octa-core 2.0 GHz (MTK family, supplier specified)
Operating System Android 12
RAM 8 GB
Internal Storage 128 GB
Expandable Storage microSD up to 128 GB
Front Camera 5 MP
Rear Camera 13 MP
Battery Capacity 8500 mAh (3.7 V Li-polymer)
Charging Fast charging supported; Pogo pin charging supported
Network 4G, 3G, 2G
Wi-Fi Dual-band 2.4 GHz and 5 GHz
Bluetooth Bluetooth connectivity (supplier-specified variant)
GNSS Multi-constellation GNSS: Beidou, GPS, GLONASS, Galileo, QZSS, SBAS
I/O Interfaces USB2.0 ×1; USB Type-C ×1; SIM slot ×1; TF slot ×1
NFC Built-in NFC (supplier indicated)
Durability Waterproof and dustproof sealing; shock and drop resistance (design spec)
Dimensions (Product) 8.88 in × 5.69 in × 0.85 in (225.6 mm × 144.6 mm × 21.5 mm)
Weight (Product Only) 1.58 lb (715 g)
