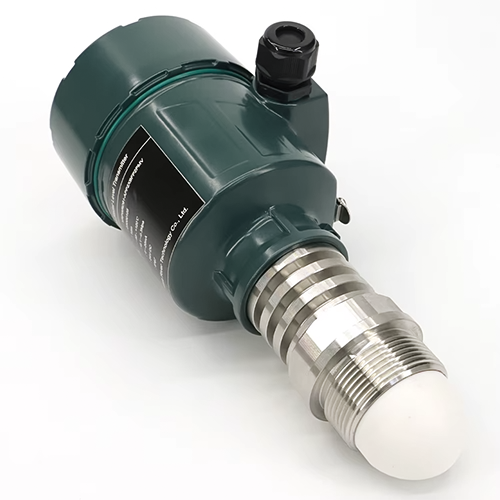

High Precision Liquid Level Radar Sensor for Tanks - Asset Track Pro

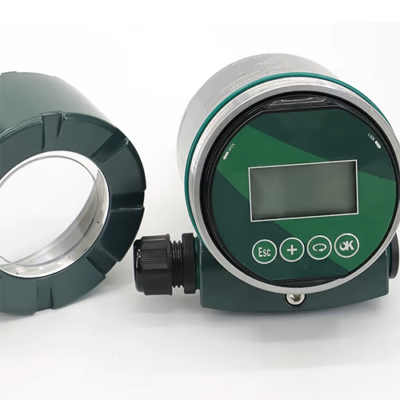

High Precision Liquid Level Radar Sensor for Tanks - Asset Track Pro - Image 2

High Precision Liquid Level Radar Sensor for Tanks – Asset Track Pro

Experience precise liquid level measurement with the radar sensor – Asset Track Pro, featuring anti-corrosion, and wide temperature compatibility.

SKU: ATPWPS-124 Category:

Description

Features

  • Non-contract measurement with FMCW working principle
  • The beam angle is small, and it is easier for the instrument to avoid inter from a possible obstacle
  • Almost unaffected by corrosive vapor and foam
  • Be more suitable for used in heavy dusty environments
  • The radar’s antenna size is small, and it is easy to be installed
  • The upper dead zone is smaller, it is more suitable for the level measurement storage tanks



Technical Specifications

Measuring Range 1,000 cm (393.7 in) / 2,000 cm (787.4 in) / 3,500 cm (1,377.95 in)
Accuracy ±0.2 cm (±0.08 in)
Power Supply 24V DC (Two/Four-Wire) or 220V AC (Four-Wire)
Single Output 4mA to 20mA / HART Protocol
Process Connection Thread or Flange
Operating Frequency 80 GHz
Enclosure Protection IP67 (Aluminum Housing)
Explosion Proof Grade Ex ia IIC T6 Ga; Ex d IIC T6 Gb
Application Chemical, metallurgical, food processing, wastewater, and various industrial tanks (e.g., acids, lyes)
Features Anti-corrosion lens antenna, minimal dead zone, high precision, and easy installation
Process Temperature Range -40°F to 302°F (-40°C to +150°C)
