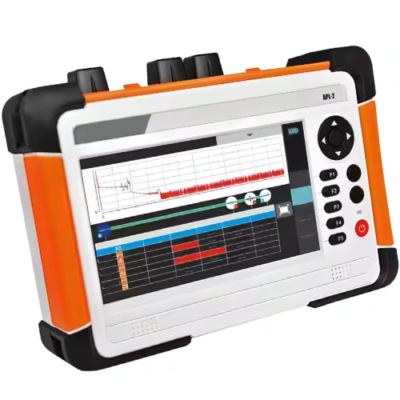

| Screen (LCD) |
7-in color LCD, multi-touch screen |
| Connector |
FC/PC (1310/1550nm) interchangeable adapter or customizable |
| Pulse Width |
5 ns to 20 μs |
| Attenuation Dead Zone |
16.4 feet (5 m) |
| Event Dead Zone |
3.28 feet (1 m) |
| Minimum Distance Resolution |
3.94 in (0.1 m) |
| Loss Resolution (dB) |
0.001 |
| Distance Uncertainty |
± (0.8 + 0.005% * Testing Distance + Resolution) |
| OPM Function |
+26 to -50 dBm, 850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm, FC or SC adapter |
| VFL Function |
10 mW |
| Storage |
Over 10,000 results (SOR or PDF format) |
| Battery |
7.4 V / 4.6 AH rechargeable lithium-ion battery |
| Function (GPS) |
Displays longitude and latitude for outdoor positioning |
| Function (VIP) |
Displays connector surface using a video inspection probe |
| Function (Iola) |
Multiples testing with a mix of short, medium, and long pulses |
| Operating Temperature |
14 °F to 122 °F (-10 °C to 50 °C), < 90 % RH |
| Storage Temperature |
-4 °F to 140 °F (-20 °C to 60 °C), < 90 % RH |
| Dimensions (H x W x D) |
9.7 in x 6.8 in x 2.8 in (24.65 cm x 17.35 cm x 7 cm) |
| Weight |
About 3.42 lbs. (1.55 kg) |
