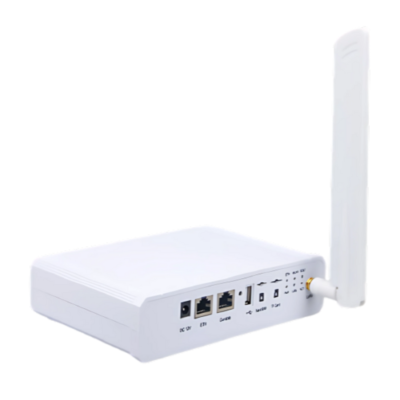

Description
Features
- Full LoRaWAN Stack (v1.0.3) with SX1302
- Multi backhaul: Ethernet, Wi-Fi, Cellular
- OpenWRT with Web UI for configuration
- Supports private (ChirpStack) and public (TTN) networks
- Built-in network server for easy deployment
- TF card for logs and frame buffering
- 4 GHz Wi-Fi AP; PoE-enabled Ethernet
- Optional LTE Cat 4 support
Technical Specifications
| Frequency | EU433, CN470, EU868, US915, AS923, AU915, IN865, KR920 |
| Power Supply | DC 12 V – 1 A PoE (IEEE 802.3 af), 36 V DC to 57 V DC |
| Power Consumption | 12 W (typical) |
| Computing | MT7628, DDR2 RAM 128 MB |
| WIFI Feature | Frequency: 2.4 GHz (802.11 b/g/n) RX Sensitivity: -95 dBm (min) TX Power: 20 dBm (max) Operation channels: 2.4 GHz: 1 to 13 SX1302 Mini PCIe card 8 channels |
| LoRa Feature | RX Sensitivity: -139 dBm (min) TX Power: 27 dBm (max) Frequency: EU433, CN470, EU868, US915, AS923, AU915, IN865, KR920 |
| Cellular | Supports Quectel EG-95-E or EG95-NA (IoT/M2M optimized LTE Cat 4 Module) EG95-E for EMEA Region LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/EDGE: B3/B8 EG95-NA for North America Region LTE FDD: B2/B4/B5/B12/B13 WCDMA: B2/B4/B5 |
| ETH | RJ45 (10/100 M) |
| Console | Type-C USB |
| Antenna | LoRa: RP-SMA Female connector LTE: Internal Antenna Wi-Fi: Internal antenna |
| LEDs | POWER LED Breathing LED (Top side) ETH LED (On ETH Connector) LoRa LED WLAN LED LTE LED |
| Ingress Protection | IP30 |
| Enclosure Material | Plastic |
| Plastic | Wall mounting |
| Operating Temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Dimension | 6.53 in × 5 in × 1.41 in (16.6 cm × 12.7 cm × 3.6 cm) |
| Weight | 0.66 lb (0.3 kg) |
