Description
Features
- Dual high performance industrial 4 or 5G communication modules
- Support 5G-Sub6 (SA or NSA), 4G (FDD-LTE or TDD-LTE), 3G (WCDMA)
- Supports IEEE802.11b or G or n or AC or ax protocols
- Metal casing, protection grade IP30

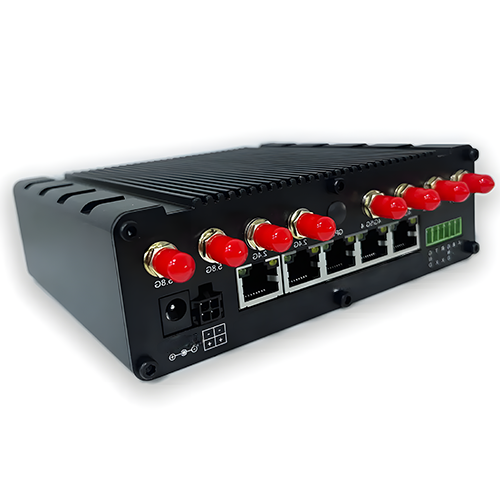

- Standard five gigabit adaptive RJ45 (Ethernet) interfaces
- Wide voltage and current input: DC7-35V or 3A, anti-reverse connection, EHV automatic power-off protection
- Software and hardware watchdog anti-crash design,
- Automatic detection of network disconnection, automatic restart of dialing failure, customized restart and other functions
- Supports more than 2 5 DDNS providers
- Internal network penetration: port forwarding, DMZ
- Supports Pptp or L 2tpVPN Client, Ipsec or OpenVPN Client, Ipsec or OpenVPN Sever
- Optional GNSS positioning module
Technical Specifications
| DHCP | Static and dynamic IP assignment |
| Firewall | Nf tables |
| OpenVPN Client | Client for standard OpenVPN |
| CPU | Mediatek, MT7621, 8.80MHz |
| RAM | 1024 Mbits DDR3 (CPU built-in) |
| Wireless Mode | IEEE802.11 a or b or g or n or ac or ac Access point (AP) |
| Operating System | OpenWrt based Linux OS |
| Ethernet | 1 x Wan + 4 x Lan RJ45 10 or 100 or 1000 Mbps |
| Input Voltage Range | 7 V to 35 V; DC |

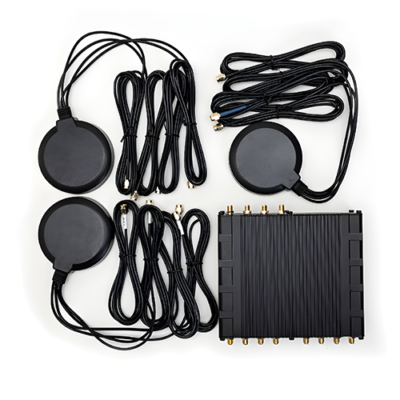

| Antenna | 13 standard SMA antenna interface |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C) |
| Size | 5.87 in x 4.96 in x 1.81 in (14.9 cm x 12.6 cm x 4.6 cm) |
| Weight | 2.20 Ib (1 kg) |
