Description
Overview

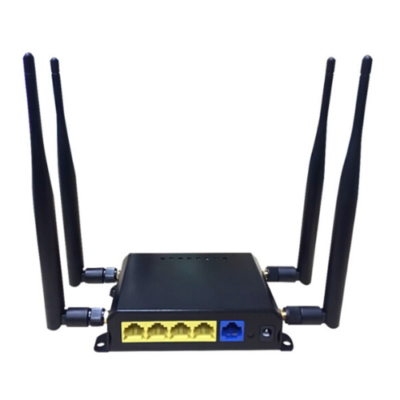

The Router uses the latest wireless solution, performs better and more function. Stable wireless performance, stronger scalability, and the Max transmission rate could be 1200Mbps (the 11ac mini-PCIE module is necessary). 2.4G 300Mbps, 5G will be 867M(Max). Support 3G,4G (3G, 4G mini-PCIE module is necessary). It could also dial-up via the USB port (should mount the 3G,4G network card. Provide 1 USB2.0 interface, 1 Micro slot.
Product Feature
- Support 80.11AC/802.11A/802.11N/802.11G/802.11B network protocol, the max transmission rate could be 1200Mbps (2.4G 300Mbps+ 5G 867Mbps)
- Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX
- 1 USB 2.0 date interface
- 1 Micro SD Card Slot
- Support 3G/4G
- Many kinds of encryptions to protect your data transmission;
- There is one mini-PCIe slot on the board, you can choose to install either 5.8G wifi module or 3G 4G LTE module.
Technical Specifications
Hardware |
||
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 32MB) | |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a IEEE 802.3, IEEE 802.3u |
|
| RT Power | 802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC module; |
|
| Reception Sensitivity | 802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC module; |
|
| Work Channel | 2.4GHz choose: 1-13
5GHz choose: 149, 153, 157, 161, 165 |
|
| Wireless Rate | Max 1200Mbps (depends on the 11AC module) | |
| Work Frequency | 2.4GHz (can choose to support 5.8GHz too, then 4G is not available) | |
| Antenna | 2*detachable Wi-Fi antenna, 2* detachable 4G antenna | |
| Interface | 1*PCI-E slot (To install 11ac or 4G module)
1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100M WAN port (Auto MDI/MDIX) |
|
| LED | Power, Mini-PCIE module, 2.4G, WAN, LAN1, LAN2, LAN3,LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12W | |
| Dimension (L*W*H) | 141 mm x 85 mm x 26 mm | |
Software |
||
| WAN Type | PPPoE, Dynamic IP, Static IP | |
| Work Mode | AP;
Router; |
|
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security | Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
| DDNS | Support | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Ctrl | Support | |
| Static Router | Support | |
| System Log | Support | |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
|
Others |
||
| Work Environments | Operating Temperature: 0℃ to 60℃; Storage Temperature: -60℃ to 70℃;Operating Humidity: 10% to 90% non-condensing Storage Humidity: 10% to 90% non-condensing |
|
| Adapter | 12V 1A | |
