Description
Overview

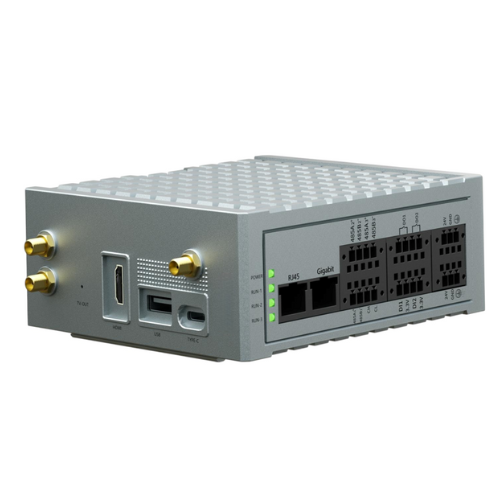

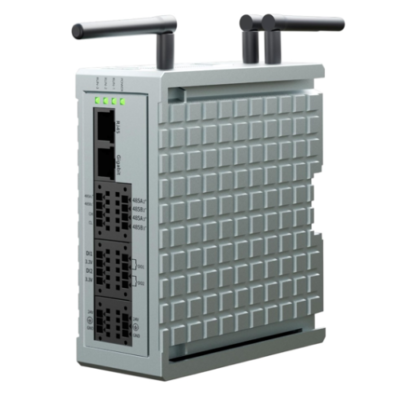

Asset Track Pro’s Industrial Edge Computing Remote Management Gateway is designed to enable secure remote monitoring, operation, and maintenance of industrial applications, supporting efficient data acquisition, edge processing, and centralized management to reduce operational costs and improve response efficiency in distributed environments.
Features
- Serial port communication for reliable integration of field serial devices with Ethernet or cloud networks
- LAN communication with WAN, cellular, wireless, and multi-LAN routing for segmented and secure network access
- Static port mapping for direct external access to internal network devices
- High-performance edge platform supporting real-time data acquisition, local storage, and bidirectional data transmission
- Edge computing with local scripting, real-time response, data aggregation, and offline operation support
- High-definition display output supporting 4K at 60 fps for on-site monitoring and interaction
- Remote desktop functionality for monitoring and control of connected interfaces
- Remote maintenance and update capabilities through secure virtual private networking
- Encrypted and authenticated data transmission to ensure network and data security
Technical Specifications
| Processor | Quad-core CPU, 1.5 GHz |
| Memory | 2 GB LPDDR4 RAM |
| Storage | 8 GB eMMC |
| SD Card Slot | TF card slot |
| USB Interface | 2 high-speed USB host ports (Type-A and Type-C) |
| Ethernet | 2 WAN ports, 10/100/1000 Mbps adaptive |
| Wireless | IEEE 802.11b/g/n |
| Cellular | LTE Cat 1 |
| Serial Ports | 1 channel RS232, 3 channels RS485 |
| CAN Bus | 1 channel |
| HDMI Output | 1 channel, supports 4K 60 fps output |
| Additional Interface | Real-time clock module |
| Input Power | DC 10.5 V to 28 V |
| Power Protection | Reverse polarity and incorrect wiring protection |
| Power Consumption | Less than 5 W |
| Withstand Voltage | 500 VAC for 1 min |
| Insulation Resistance | Over 50 MΩ at 500 VDC |
| Anti-Vibration | 10 Hz to 25 Hz, X, Y, Z directions, 2 G for 30 min |
| Cooling Method | Natural air cooling |
| Enclosure Material | ABS, flame-retardant grade |
| Protection Rating | IP20 |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Operating Humidity | 10% to 90% RH, no condensing |
| Dimensions | 4.74 in x 5.24 in x 2.03 in (12.05 cm x 13.3 cm x 5.15 cm) |
| Weight | 1.10 lb (0.50 kg) |
