Description
Overview

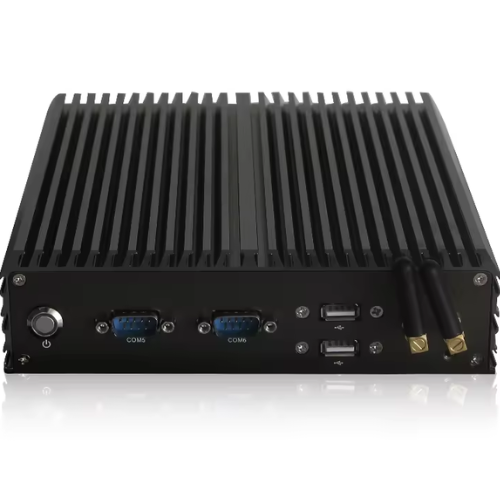

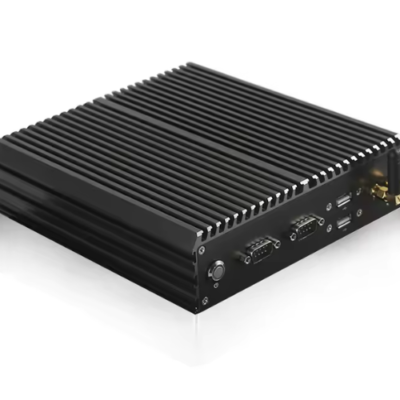

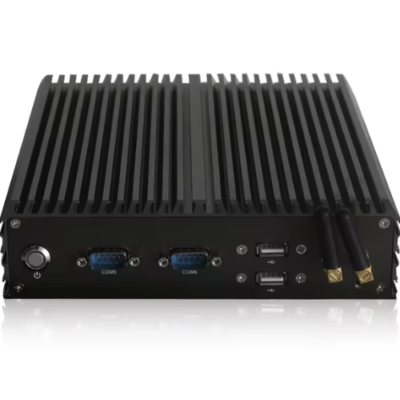

Asset Track Pro Industrial Edge Mini Computer is designed specifically for a variety of environments and can ensure long-term stable operation in harsh environments. Its compact shape adopts an all-aluminum alloy structure, fanless, and fully closed design with low power consumption, anti-vibration, reliable, environmental adaptability, real-time, scalability, EMC compatibility, etc. Computer with Core i5, up to 32 GB DDR4, and versatile OS support. Ideal for industrial automation with durable aluminum alloy.
Technical Specifications
| Processor Main Frequency | 2.4 GHz |
| RAM | 2G DDR3 (maximum support 8 GB) |
| Hard disk | 64G SSD (optional SSD solid-state hard disk 128 G to 512 G, HDD mechanical hard disk 500G to 1T) |
| Display chip | CPU built-in display core, built-in LVDS interface, epitaxial VGA, HDMI dual display |
| Audio chip | Onboard HD audio decoder controller |
| NIC chip | Onboard 1 x RTL gigabit network card (optional RJ45 x 2 to 6) |
| WIFI | 2.4G (Optional 5G or 2.4G + Bluetooth 4.0 or 5G + Bluetooth 4.0) |
| Power adapter | 100V to 240V input; 12V dedicated external power adapter |
| Resolution support | 800 x 600 or more |
| Power consumption | Low power 30 W to 40 W |
| Operating system | Support Windows and Linux |
| HD support | 1080 P |
| Anti-vibration | 5 Hz to 19 HZ or 0.03 in (1.0 mm) amplitude; 19 to 200 HZ or 0.03 oz (1.0 g) acceleration |
| Anti-interference | EMI or EMC interference detection standard |
| Shock resistance | 0.35 oz (10 g) acceleration, 11 ms cycles |
| Installation method | Fixed method and VESA wall-mounted installation |
| Chassis structure | Aluminum alloy die-casting is integrally formed, which has good shock resistance and impact resistance |
| Product color | Standard gun color (optional black, silver) |
| Product Dimension | 7.85 in x 8.38 in x 2.29 in
(199.5 mm x 213.1 mm x 58.3 mm) |
| Weight | 4.18 lb (1.9 kg) |
