Description
Features
- Embedded Design Intel Baytrail-D or I or M
- DDR3 SODIMM 204 Socket RAM socket Max support8G
- Onboard 32 or 128G EMMC chip(Optional)
- Mini-PCIE socket,Support wifi module,and SIM card socket
- Fanless Design,Noiseless design,Stable and efficient
- 12V DC power supply
Technical Specifications
| Processor System | SOC Embedded, Baytrail-M or D series, J1900 or J1800 |
| OS Support | Win7, Win10, Linux |
| Memory | 1 x 204pin SO-DIMM，DDR3 1333MHz，up to 16GB |
| Storage | 1 x SATA3 1 x M-SATA Slot |
| Graphics | 1 x VGA，up to 1920×1200 H-D Graphics |

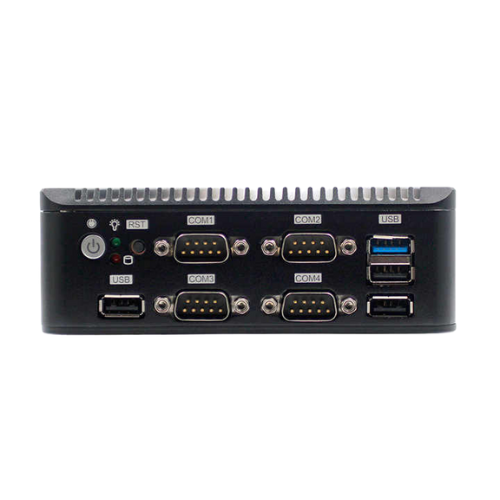

| I O Interface | 1 x DC jack 1 x VGA 2 x RJ45 5 x USB2.0 1 x USB3.0 4 x COM 1 x Mic-in 1 x Line-out jack |
| Others | LAN Controller 2 x Intel I211AT Giga LAN or i225 LAN Card Audio Realtek ALC662 Super I or O ITE8786E 8bit GPIO Watchdog 0-255sec |
| Power | DC12 to 19V, 60W |
| Operating Humidity | 5% to 90% |
| Storage Humidity | 5% to 90% |
| Operating Temp | -4°F to 140°F (-20℃ to 60℃) |
| Storage Temp | -40°F to 185°F (-40℃ to 85℃) |
| Dimensions | 5.28 x 4.96 x 1.84 inches (134 x 126 x 46.8mm) |
| Net Weight | 1.1 lbs (0.5Kg) |
