Description
Overview

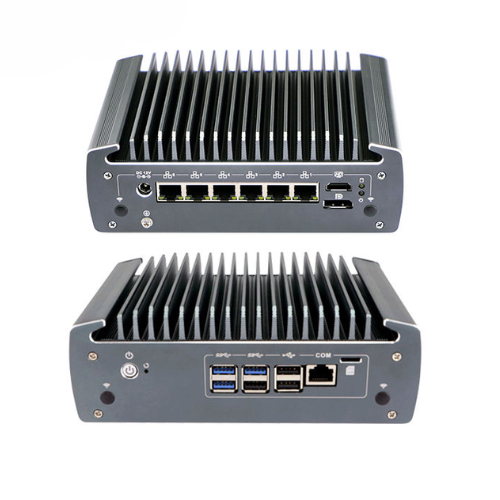

Asset Track Pro’s Industrial-grade fanless mini PC with Core i5, 6x LAN features a robust design, operating within a wide temperature range of -20°C to +50°C, making it suitable for harsh industrial environments. Equipped with an Intel Core i5-10310U quad-core processor and up to 64GB of DDR4 RAM, this mini PC delivers exceptional processing power for demanding tasks and applications. The device boasts 6x Intel I225-V 2.5G LAN ports, supporting Power over Ethernet (POE) for efficient and convenient network connectivity in industrial settings. This mini PC offers various expansion options, including 3x M.2 slots, 1x 2.5″ SSD/HDD slot, and support for RAID 0/1 configurations, allowing users to tailor the system to their specific needs.
Features
- All aluminum structure, Fanless design
- Onboard Intel 10th Generation Core i3 10110U/i5 10310U/i7 10810U CPU
- Support 6*Intel i225-V 2.5G(4*POE is optional)
- Support 1*M.2 3052 B-key,5G modem is optional
- Support 3*M.2 slots(Support WIFI and 4G or 5G)
- Support 2*DDR4 RAM Slot, Max Support 64G
- Support TPM 2.0 security encryption
Technical Specifications
| Color | Metal gray (Color can be customized) |
| Material | High-quality all aluminum, Surface anodic oxidation |
| Processor | Intel Core i3 10110U (Dual core, 4 threads, 2.1GHz, Max Turbo 4.1GHz) Intel Core i5 10310U (Quad core, 8 threads, 1.6GHz, Max Turbo 4.2GHz) Intel Core i7 10810U (Six core, 12 threads, 1.1GHz, Max Turbo 4.9GHz) |
| RAM | 2 x DDR4 2666MHz SOIMM RAM slots, Max. 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display Port | 1 x DP, 1 x HD (Supports synchronous/asynchronous dual display, DP interface resolution up to 4096 × 2160 @ 60Hz) |

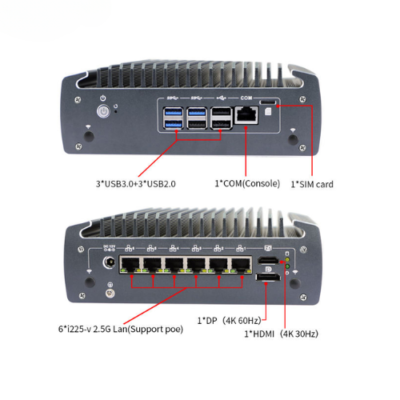

| Front I/O | 3 x USB 3.0, 3 x USB 2.0, 1 x Power Switch, 1 x RJ45 COM (Supports Console) |
| Rear I/O | 6 x RJ45 LAN, 1 x DC, 1 x DP, 1 x HD |
| Expansion | 1 x M.1 2280 M-Key slot (Supports SATA and NVME protocol) 1 x M.2 3052 B-Key slot (Supports USB 3.0 protocol, supports 4G/5G), 1 x Nano-SIM slot on the plate 1 x M.2 2230 E-Key slot (Supports WiFi/Bluetooth) |
| Network | 6 x Intel i225-V 2.5G LANs, LAN3-6 can be 802.3af standard POE LAN (optional) |
| Storage | 1 x M.2, 1 x 2.5” SSD/HDD, supports RAID 0/1 |
| Input Voltage | DC 12V Input |
| Other Functions | Auto power on when electricity is available Timing boot Wake on LAN PXE boot Watchdog (0–255 level) |
| Application | Firewall, VPN, Network server, Network security, Router, etc. |
| Certificates | CE, CCC, FCC Class A, ROHS |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) (Commercial HDD) -4°F to 122°F (-20°C to +50°C) (Industrial SSD), Surface air flow |
| Operating Humidity | 0% to 95% non-condensing |
| Dimensions | 7.32 in × 4.98 in × 2.6 in (186 mm × 126.5 mm × 66 mm) |
| Weight | 2.87 lb (1.3 kg) |
