Industrial Grade LoRaWAN IoT Gateway with Multi Network Support - Asset Track Pro

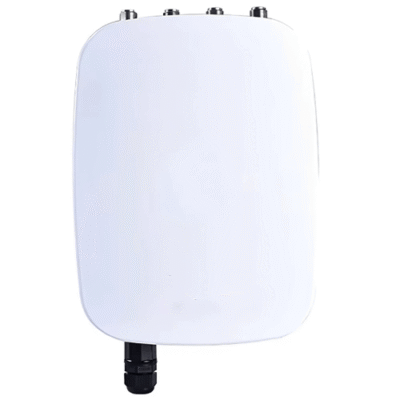

Industrial Grade LoRaWAN IoT Gateway with Multi Network Support – Asset Track Pro

Experience reliable connectivity with our industrial-grade LoRaWAN IoT gateway, supporting multiple networks and versatile applications for smart solutions.

SKU: ATPLHSH-283 Category:

Description

Features

  • Supports the standard LoRaWAN protocol with global frequency band options
  • Utilizes Semtech SX130X chips
  • 8 Data Channels and 1 control channel, with full-duplex/half-duplex options
  • Supports Winext IoT-vision, with built-in Net Serve options
  • Compatible with network servers such as Tencent Cloud, LinkWAN, TTN, Chirpstack, Amazon, etc.
  • Supports IPv6 and Modbus TCP protocol
  • Transmission range up to 15 kilometers
  • IP67 Protection Rating
  • Supports standard PoE (Power over Ethernet) power supply
  • Supports for Class A/B/C
  • Integrated WiFi/GPS/LTE/LoRa Antenna
  • Certified with CE and FCC



Technical Specifications

CPU Industrial Grade CPU operating at 400MHz
Memory 64M DDR2 RAM, 16M SPI FLASH
System Linux-3.18.27 (32-bit system, 128kB L2 cache)
LoRa Data Rate 292bps to 5.4Kbps
Ethernet Communication Rate 100Mbps
LTE Communication Rate 50Mbps
Working Frequency CN470510MHz, EU863870MHz, US902928MHz, AS920925MHz, AU915928MHz, KR920923MHz, RU864~870MHz, IN865-867MHz
Max Transmission Power 26dbm
Rx Sensitivity -142dBm@SF12 (half-duplex) or -138dBm@SF12 (full-duplex)
Channels 8 Data Channels, 1 Control Channel
Communication Interface 1LAN, 1WAN, 1WIFI, 1LTE module
Input POE power supply with 48V input (24 to 8V)
Power Consumption 7W
Installation Wall-mounted or Pole-mounted
Certificate CE or FCC
Thunder Protection Optional
Ingress Protection IP67
Working Temperature -40℉ to 176℉ (-40℃ to 80℃)
Dimension  11.33 in x 8.46 in x 2.32 in (28.8 cm x 21.5 cm x 5.9 cm)
