| CPU |
RK3568J/RK3568B2, 22nm |
| RAM |
1/2/4 GB LPDDR4X |
| Storage / ROM |
8/16/32 GB eMMC |
| Ethernet Ports |
3 x RJ-45, 10/100M, ESD Level 3, EFT Level 3 |
| USB Ports |
2 x USB 2.0 HOST, high-speed 480 Mbps, ESD Level 3 |
| IO Slots |
X series: 1 slot (RS485, CAN, RS232, RS422, DI, DO, GPIO)Y series: 2 slots (RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC) |
| Mini PCIe |
1, supports Bluetooth, WiFi, 4G module |
| SIM Slot |
1, Nano SIM |
| Antennas |
2, for 4G/WiFi/GPS |
| Communication Interfaces |
RS485, Ethernet, USB, Bluetooth, RS232, Wi-Fi, PCIe, 4G |
| Software |
Node-Red, Python, Docker, C#, MySQL, SQLite |
| Power Input |
DC 9–36V |
| Installation |
DIN35 rail mounting, wall mounting |
| Debug Port |
1 x Micro USB |
| SD Slot |
1 |
| Product Type |

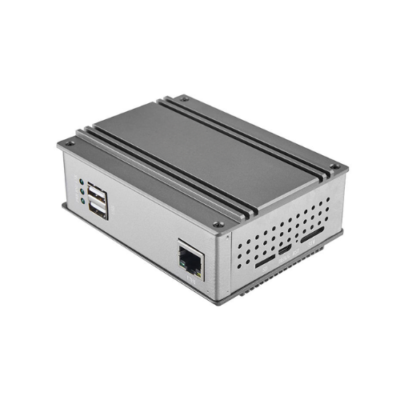

Embedded IoT Edge Gateway |
| Dimension |
110 x 83 x 42 mm or 110 x 83 x 48 mm (4.33 x 3.27 x 1.65 in / 4.33 x 3.27 x 1.89 in) |
| Weight |
Not specified |
