| Case Color |
Metal gray (Any color customizable) |
| Material |
High-quality all-aluminum, surface hard anodized |
| Processor |
Intel Celeron J6412 (4 cores, 4 threads, 2.0 GHz, Max Turbo 2.6 GHz) |
| CPU Architecture |
Elkhart Lake |
| Memory |
1 x DDR4 3200MHz SODIMM RAM Slot, Max 32 GB |
| Storage |
1 x M.2 2280 Slot, 1 x 2.5” HDD or SSD |
| Display Chip |
Intel UHD Graphics |
| Display Interface |
2 x HD (Supports synchronous & asynchronous dual display, Max resolution 4096×2160 @ 60Hz) |
| Front I/O |
1 x Power Switch, 4 x USB 3.1, 2 x USB 2.0, 1 x DB9 COM, 1 x SIM Slot |

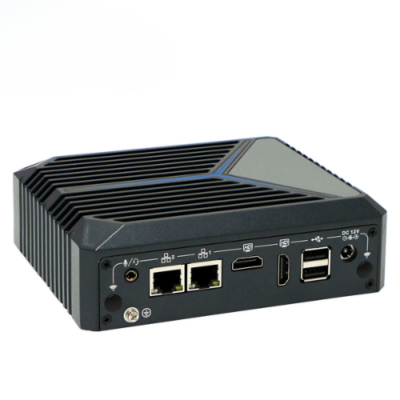

| Rear I/O |
1 x DC, 2 x USB 2.0, 2 x HD, 2 x RJ45 LAN, 1 x Audio (Supports Mic & Speaker simultaneously) |
| Expansion |
1 x M.2 2280 M-Key Slot (Supports SATA Protocol), 1 x Mini PCIe Slot (Supports WiFi or 4G) |
| Network |
2 x Realtek 8111H 1000M LAN |
| Other Functions |
Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog (0–255 Level), TPM 2.0 security encryption |
| Power Supply |
DC 12V |
| Applications |
Industrial automation, medical, logistics, transportation, warehousing, electronic education, etc. |
| Operating Temperature |
32°F to 104°F (0°C to +40°C) (Commercial HDD), -4°F to 140°F (-20°C to +60°C) (Industrial SSD), Surface air flow |
| Operating Humidity |
0% to 95% non-condensing |
| Dimensions |
7.32 in × 4.98 in × 2.6 in (186 mm × 126.5 mm × 66 mm) |
| Weight |
1.85 lb (0.84 kg) |
