Description
Features
- Purpose-built for high performance.
- Flexibility to deliver security and networking services.
- Infrastructure that secures the platforms against threats.7
Technical Specifications
| Motherboard | CPU: Integrated Intel® Celeron3865U/1.80GHz dual-core, dual-threaded processor, TDP15W Display: Integrated Intel® HD Graphics 610 with 4K support RAM: 2 x SODDR4 DIMM 2133MHz memory |
| Front Panel Connectors | POWER: 1 x Boot button, 1 x One-Key Restore (choose one with Reset button), 1 x ACLOSS (power on/off toggle switch) LED: 1 x Power Indicator, 1 x Hard Drive Indicator USB: 3 x USB2.0, 1 x Built-in USB2.0 Phoenix Terminal: 1 x 12pin (including four in four out GPIO or power on button or 5V) COM: 2 x RS232 or 485 DB9 serial port, support CAN (need to load CAN module) SIM: 1 x SIM card slot |

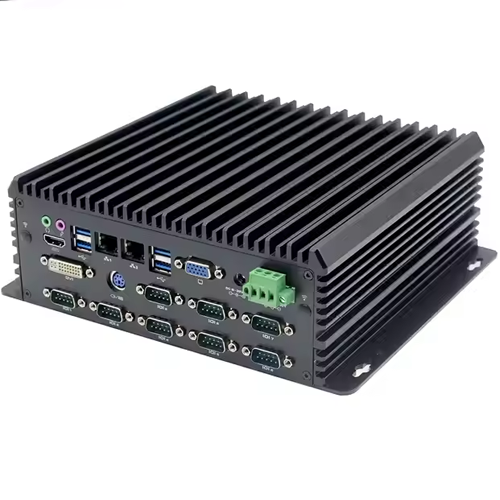

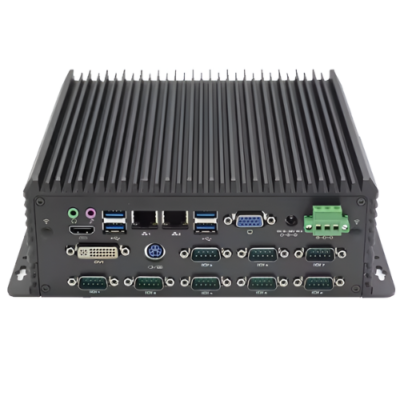

| Rear Panel Interface | Display Interface: 1 x VGA (1920 x 1200 at 60Hz), 1 x HDMI1.4 (4096 x 2304 at 24Hz), 1 x DVI, support triple displays LAN: 2 x Intel I211 Gigabit power port, support Wake on LAN, PXE function USB: 4 x USB3.0 COM: 8 x RS232 DB9 serial port, COM5~8 support RS485 PS2: 1 x PS2 AUDIO: 1 x Line out, 1 x MIC Power supply: 1 x DC power supply interface or 1 x 3pin Phoenix terminal interface, support 9 to 36V wide voltage input |
| Storage | SATA: 1 x 2.5-inch hard drive bay MSATA: 1 x MSATA, transfer speed up to 6Gbps |
| Expansion | MINIPCIE: 1 x Mini PCIE, support WIFI module M.2: 1 x M.2 or Wi-Fi, support Key-E, 2230, Wi-Fi module M.2: 1 x M.2 or 5G, support Key-B, 2242 or 52, 5G module |
| System Support | Windows: Windows 7 Linux: Ubuntu Watch Dog: Support hardware reset function |
| Power Requirements | Power supply type: External power adapter or open power supply Voltage Input: 9V to 36V wide voltage Power Output: 60W to 180W (depends on specific equipment) |
