Description
Overview

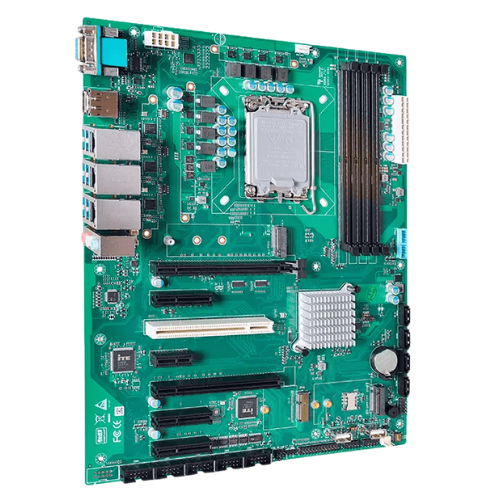

Asset Track Pro’s Intel-Compatible Motherboard with RAID, Storage & I/O with motherboard that is compatible with the 12th and 13th generation Intel Core Series processors, including Pentium and Celeron series, ensuring seamless integration and performance. With dual-channel 4x DDR5 U-DIMM slots, this motherboard supports up to 128GB of memory, providing ample space for multitasking and demanding applications. Featuring 6x USB 3.2 ports, 3x RJ45 LAN ports (with one supporting AMT), and an M.2 M-key 2280 NVMe slot, this motherboard offers extensive connectivity for peripherals and storage devices. The motherboard includes 4x SATA 3.0 ports that support RAID 0, 1, 5, and 10 configurations, ensuring reliable data storage and transfer.
Technical Specifications
| Processor System | Intel 12th/13th generation core series, celeron and pentium series, LGA1700 EFI BIOS |
| Memory | Dual channel 4 x DDR5 U-DIMM, up to 128GB |
| Storage | 1 x M.2 M-key 2280 (NVMe) 4 x SATA3.0 ports (supports RAID0/1/5/10) |
| Board Side I/O Interface | 1 x H-D2.0, support 4096×2160@60Hz, 1 x DP support 7680×4320, 60Hz, 1 x VGA 3 x RJ45 I226 network port (LAN3 supports AMT), 6 x USB3.2 1 x DB9 COM1 (RS232/RS422/RS485 optional) 1 x AUDIO (Line in, Line out, Mic in) |

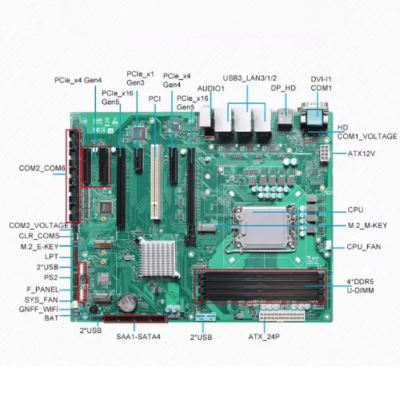

| Expansion Interfaces/Functions | TPM2.0 optional, not available by default, 1 x F_PANEL pin, 1 x LPT (switchable 8-way GPIO) pin 2 x type A USB2.0, 2 x USB2.0 pins, 2 x USB3.2 pins, 1 x 5VSB dip switch 2 x PCIe_x16 slots (PCIe5.0_x16 for PCIE1, automatically downgraded to x8 when 2 PCIE_x16 slots are used at the same time) 3 x PCIe_x4(4.0), 1 x PCIe_x1(3.0), 1 x PCI 1 x M.2 E-key (PCIe3.0/2.0 protocol CNVi, support WIFI/BT module) 1 x M.2 B-key (USB2.0/USB3.0 protocol, support 4G/5G module); 1 x SIM 5 x COM pins (COM2-COM6), of which COM2 is optional RS232/RS422/RS485 2 x control COM ports (COM1 and COM2) 9PIN voltage pins 1 x 4Pin intelligent temperature control CPU fan, 1 system fan 1 x H-D pin, 1 x F_AUDIO pin, 1 x SPK pin 1 x PS2 Pin, 1 x CLR_COMS Pin |
| Power Supply | ATX 24+8 pin power supply, 350W or more |
| Operating System | Win10, win11, linux |
| Working Temperature | -4°F to 140°F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40°F to 185°F (-40 ℃ to +85 ℃) |
| Working Humidity | 5% to 90% |
| Storage Humidity | 5% to 90% |
| Product Size | 12.01 in x 49.61 in (305 mm x 244 mm) |
| Weight | About 22.93 oz (650 g) |
