Description
Technical Specifications
| Processor System | Onboard intel core 8th generation whiskey lake-U/10th generation comet lake-U/ 11th generation tiger lake-U series processors |
| Material | Aluminum body |
| Network Card | 2x intel gigabit LAN |
| RAM | 2 DDR4 SODIMMs, expandable up to 64GB |
| Storage | 1 M.2 2242 (support PCIe x2 NVMe or SATA protocol, choose one of the two) One 2.5-inch SATA3.0 hard drive can be expanded |

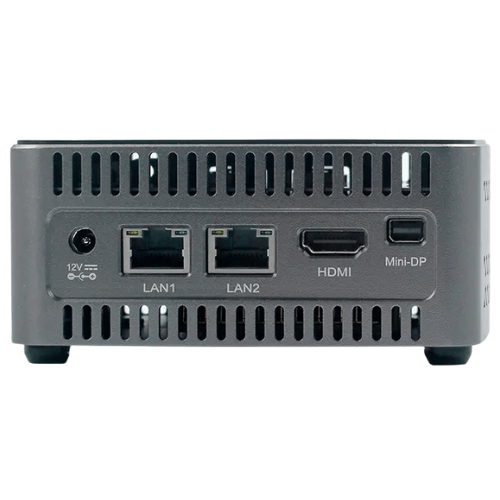

| I/O Interface | 1 switch button 2 Gigabit ethernet ports 1 H-D2.0 interface, 1 mini DP interface, 4K, 60HZ display 1 DC power jack 1 2-in-1 audio jack 2 USB3.1 ports, 2 USB2.0 ports 1 type-C interface |
| Extended Interface/Function | Optional WIFI/BT, 4G module long card, built-in antenna |
| Power Supply | DC 12 V, 7.5 A |
| Operating System | Win10, win11, linux |
| Accessories | Default 12V, 7.5A adapter; manual; HD-MI high-definition cable; rear bracket |
| Product Size | 4.51 in x 4.51 in x 2.08 in (114.5 mm x 114.5 mm x 52.8 mm) |
| Weight | N.W: 2.65 lbs (1.2KG) (excluding the 2.5-inch hard disk) G.W：5.07lbs(2.3KG) (excluding the 2.5-inch hard disk) |
