Description
Overview

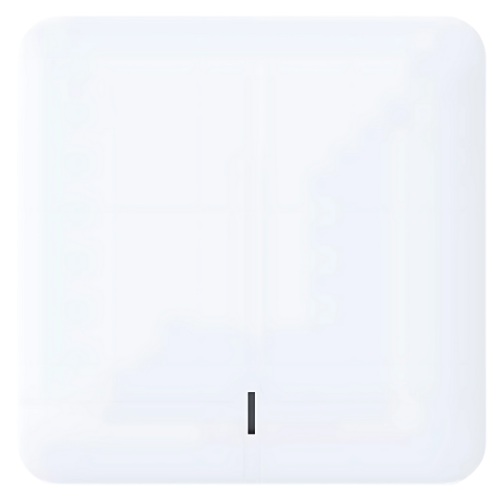

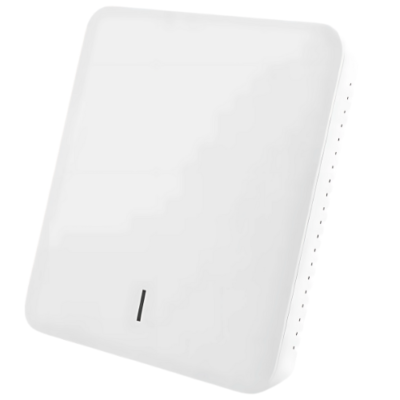

Asset Track Pro IoT BLE beacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. This support cellular (3 G/4 G), WiFi, WiFi hoppen, or Ethernet network connection. It can be powered by DC 5V, or POE (802.3af). It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.
Features
- Support Wi-Fi / Ethernet / Cellular
- Support iBeacon/Eddystone/Kensor and other BLE device
- Support HTTP/HTTPS, MQTT/TLS MQTT
- Powerful network diagnostics
- Hardware level WatchDog, ensure 24-hours full time data upload
- Optional 4G LTE module & GPS module
- Web portal for configuration
- CE/FCC certified
Technical Specifications
| Bluetooth | BLE 4.2 5.0 |
| Material | Industry use plastic |
| Transmitting Protocol | HTTPS, MQTT |
| BLE Chipset | nRF528 series |
| Indicator | RGB LED indicato |
| Wireless Distance | 300 m |
| Transmitting Way | Cellular (USB dongle for 3 G/4 G), ETH RJ45, WiFi |
| Humidity | 65 % RH |
| Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Size | 6.49 in × 6.49 in × 0.98 in (16.5 cm × 16.5 cm × 2.5 cm) |
| Weight | 9.52 oz (270 g) |
