Description

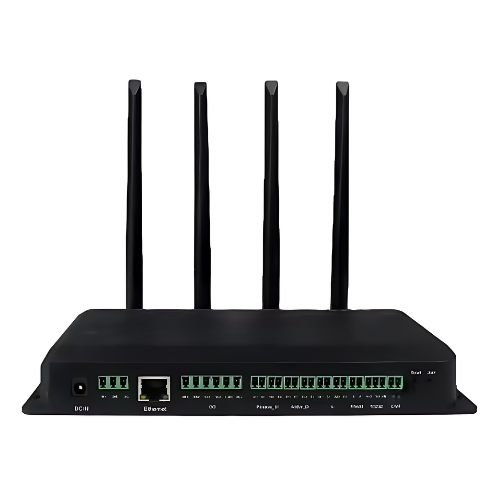

Technical Specifications
| RAM
|
Up to 512MB
|
| CPU
|
ARM Cortex to A7,800Mhz
|
| eMMC
|
Up to 8G
|
| OS
|
Linux
|
| Flash
|
8GB eMMC
|
| Power
|
Input DC 12 to 48V
|
| Indicator LEDs
|
Power LED normally on when powered on
Zigbee or BLE or Z to WAVE LED is flash when the signal come Network LED is flash, When the gateway can access the Internet Ethernet LED is flash, When the network port is plugged into the Internet cable LTE Signal LED, it indicates the signal strength of LTE
|
| I/O Port
|
4 digital input channels DI
State 1, +10 to +30 V State 0, 0 to +3V 2 digital output channels DO Maximum load 5A at 30VDC or 250VAC 2 analog input channels Al Current signal 0 to 20 mA, 4 to 20 mA Voltage signal 0 to 5VDC, 0 to 10VDC Choose one of the above 4 ranges
|
| Ethernet
|
1 x 10 or 100 Mbps WAN or LAN port
|
| SIM card Slot
|
2 x Drawer card slot
|
| Antenna
|
3 x SMA, 1 x LTE, 2 x 2.4GHZ
|
| RS232
|
Support |
| RS485
|
Support |
| CAN
|
Support |
| Industry Protocol
|
BACnet Profinet Ethernet or IP Modbus OPC or UA |
| Installation
|
DIN to rail, wall mounting
|
| Protection Rating
|
IP30
|
| Housing
|
Aluminum alloy
|
| Storage Temperature
|
104 °F to 185 °F (40 °C to 85°C) |
| Operating tepreture | 104 °F to 185 °F (40 °C to 85°C) |
