Description
Overview

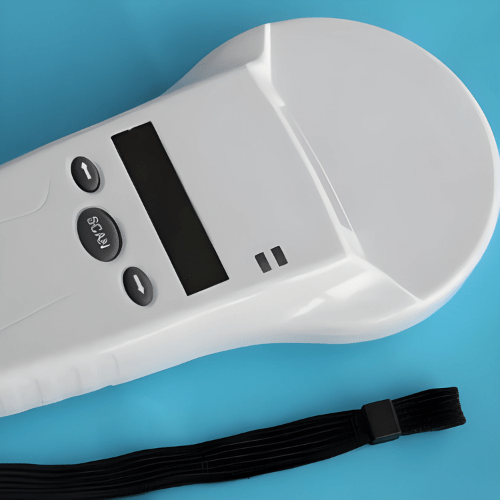

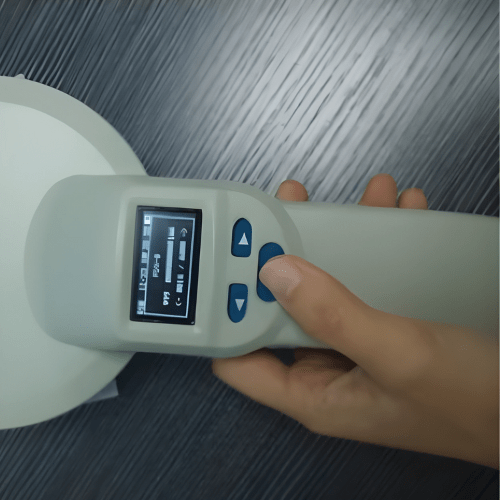

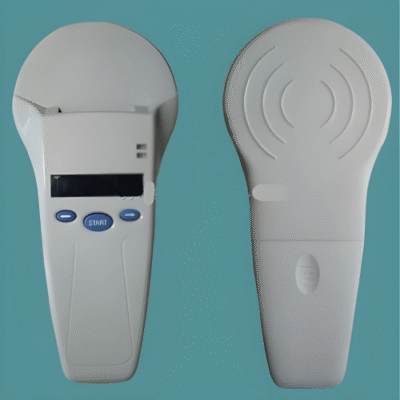

Asset Track Pro LF handheld Wireless RFID Reader is the latest product developed by our company. It can read the LF tag compliant to ISO11784 or 785FDX-A, FDX-B and HDX standard, compact design and easy to use. And can be widely used for pet management, animal tracking, and livestock tagging system. With long range, had been widely confirmed by customers.
Features
- Support all common ISO11784 or 11785 RFID animal tags
- Easy operation, reading with only one button

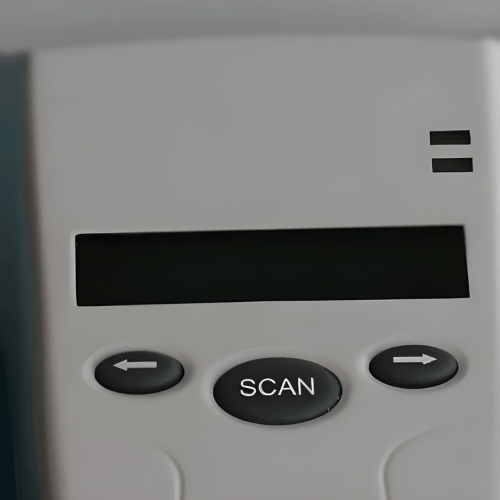

- The display comes with backlight for easy reading in dark environment
- Big memory to in store up to 8000 pcs ID number data
- Directly read the history data under internal reading mode
- Low battery alarm function when battery power is lower than 7.8 V
- Optional output interface for external antenna
- Standard USB interfaces to connect with computer for data uploading
- Color option of White, Black
Technical Specifications
| CPU | ARM (STM 32) |
| Working Frequency | 134.2 KHz |
| Protocol | EPC G2 or ISO18000-6c |
| Screen | 128 x 32 OLED |
| System Clock | Built-In |
| Buzzer | Built-In |
| Data Storage | 7000 Records |
| Power Supply | Rechargeable Lithium Battery |
| Communication Mode | Bluetooth & USB |
| Continuous Working Time | 12 Hours |
| Storage Temperature | -22 °F to 149 °F (-30 °C to 65 °C) |
| Operation Temperature | -22 °F to 122 °F (-30 °C to 50 °C) |
| Operation Humidity | 5 % to 90 % |
| Reading Standard | ISO11784 or 5 FDX-B, HDX, ID64 |
| Operation Language | Chinese Version (Simplified Chinese, Traditional Chinese, English) Central Asia Version (Kazakh, Russian, Mongol, English) European Version (French, German, Spanish, Portuguese, Dutch, Danish, English) |
| International Certification | CE, Rohs |
| Guarantee | One Year |
| Reading Head | One-Dimensional Bar Code Reading Head (Optional) |
| Accessories | Packing Box, Charger Kit, A Standby Battery |
| Reading Distance | FDX-B 6.70 in (17 cm), Microchip 3.54 in (9 cm), HDX 7.87 in (20 cm) |
