Description
Overview

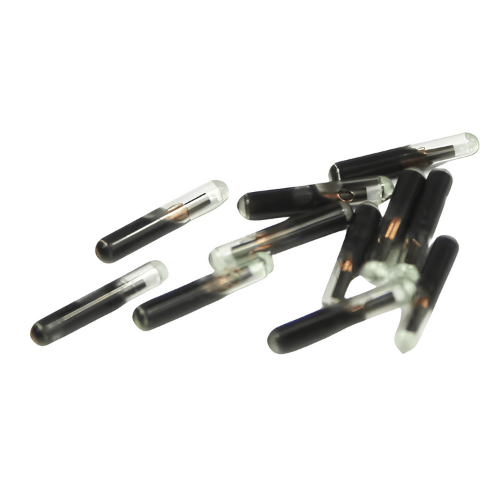

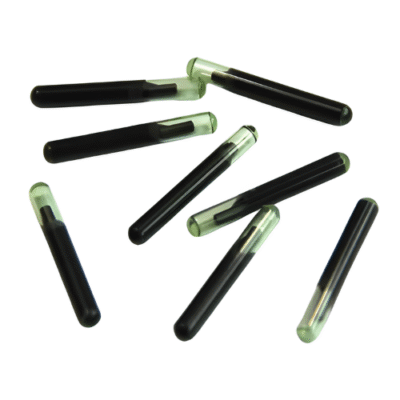

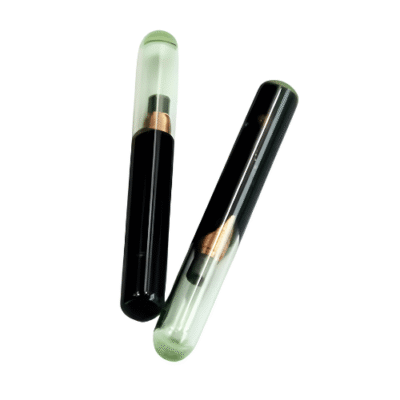

Asset Track Pro RFID glass tube capsule tag is a kind of special electronic device for animal identification and electronic management. It is an electronic ID card that can be automatically identified for animals. People can easily identify each individual animal through various types of special readers. In this way, many animal research, breeding, management, investigation and other work, such as individual screening, data statistics, tracking control, automatic feeding, behavior management, etc., have achieved automatic and information-based technical means, and the ability of tracking and management of animals will be greatly improved. The glass tube capsule tag is suitable for pet dog, working dog and animal identification in animal husbandry. The glass tube is divided into read-only type and read-write type. It is produced by adopting biochemical medical materials and processes, and fully conforms to the international standard iso11784 or 85. At present, it has been widely used at home and abroad to manage the whole process of animal growth in an all-round way.
Features
- Passive active chip
- Flexible solutions
- Unique ID number
- Advanced security functions (data integrity check, encrypted identity authentication)
- Easy to use, small size, long service life, with anti-sliding material on the surface
- Original imported animal chip, stable operation
- Strictly disinfect before delivery
Technical Specifications
| Material | Glass |
| Frequency | 134.2 KHz ± 1 KHz |
| Chip | EM 4305 |
| Color | Transparent |
| Operating Temperature | -4 °F to 149 °F (-20 °C to 65 °C) (no ice) |
| Save Ambient Temperature | -22 °F to 167 °F (-30 °C to 75 °C) (no ice) |
| Chemical Resistance | IP67 standard, waterproof, sunscreen and immersion proof |
| Function | Read and write |
| Storage Capacity | EEPROM 512 bit USER DATA 288 bit |
| Data Retention | > 10 years |
| Lifetime | >100,000 times |
| Power | Passive |
| Size | 0.05 in x 0.31 in (1.4 mm x 8 mm) or 0.08 in x 0.47 in (2.12 mm x 12 mm) |
| Read Range | 0.39 in to 1.97 in (1 cm to 5 cm) |
| Weight | About 0.03 Oz (1 g) or 0.07 Oz (2 g) |
