Description
Overview

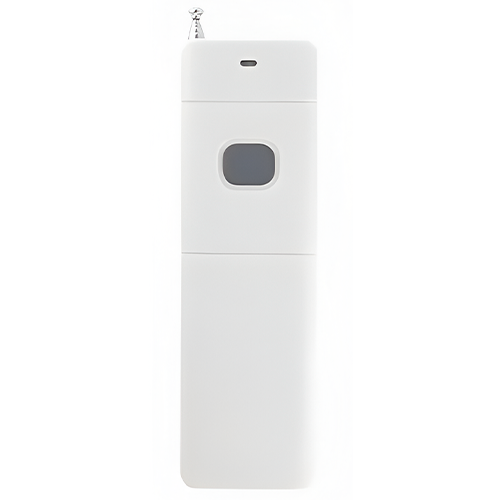

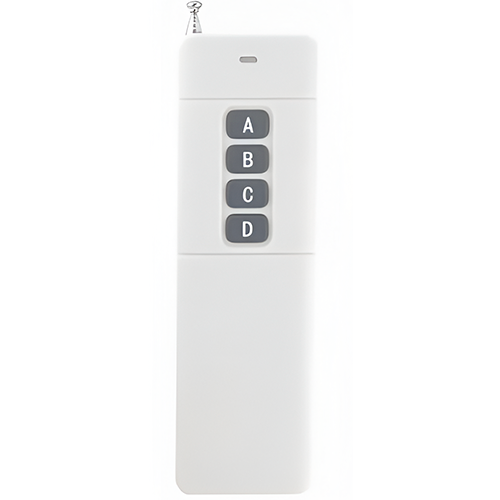

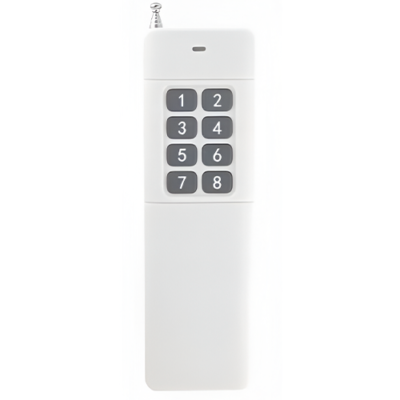

Asset Track Pro’s long-range LoRaWAN transmitter anti-jamming remote control is a super far distance bidirectional communication remote control series that developed by our company lately. There are 6 models according to different buttons sum 1, 2, 4, 6, 8, 12. It adopts spread spectrum communication technology to increase the anti-jamming performance. American chipset and strict inspection ensure the quality and reliability. The measured operation range can be more than 3.7 mi (6000 m) when the remote control is working with the specialized receiver module. If the bidirectional mode is selected, the remote will instantly receive feedback from the receiver.
Features
- Spread spectrum communication technology
- Super far distance
- Anti-jamming performance
- Specialized receiver module
- LED indicator lights
- Beep feedback
Technical Specifications
| Working Current | ≤ 110 mA |
| Frequency | 434 MHz or 868 MHz |
| Working Voltage | DC 9 V |
| Coding Type | Private code |
| Distance | 9.75 mi (15.7 km) (extreme value) |
| Buttons | 1 or 2 or 4 or 8 or 12 |
| Modulation Type | FSK and LoRaWAN |
| Transmission Distance | 3.1 mi (5000 m) |
| Standby Current | 5 uA |
| Signal Transmission | RF remote control |
| Material | Plastic |
| Type | Button |
| Voltage | 12 V |
| Receive Current | 16 mA |
| Receiving Sensitivity | – 148 dBm |
| Control Distance | 3.7 mi (6000 m) (open area) |
| Weight | 3.53 oz (100 g) |
| Dimension | 5.31 in x 1.7 in x 1.0 in (135 mm x 42 mm x 25 mm) |
