Description
Features

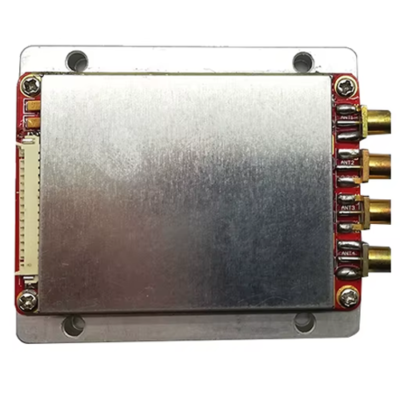

- Adopt IMPINJ R2000 RFID chip
- Support EU 840 MHz to 868 MHz, US 902 MHz to 928 MHz working frequency (or customized)
- Support EPC global UHF class 1 gen2 or ISO18000-6C protocol RFID tags
- Support temperature sensor RFID tag, moisture Sensor RFID tag and some other sensor RFID tags
- Optimized multiple tags inventory algorithm, speed is more than 100 per second
- Effective distance more than 131.23 ft (40 m) with 10 dBi linear polarized antenna and E41 tag

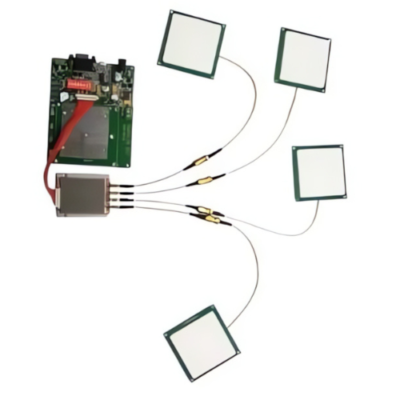

- Support 4 external antennas with MCX
- Support RS232(3.3V TTL level)
- Lower dissipation design, single +5V power supply
- Provide free Windows, Linux & Android DEMO software and SDK for testing and further development
Technical Specifications
| Chip | Impinj R2000 |
| Frequency Band | 840 MHz to 960 MHz |
| Antenna Socket | 4 Ports MCX |
| Effective Range | 1574.8 in (40 m) with 10 dbi linear antenna |
| Reading Speed | ≥100 pcs per s |
| Interface | RS232 (TTL Level) |
| RF Power | 30 dbm |
| Protocol | ISO 18000 to 6C (EPC C1G2) |
