Description
Overview

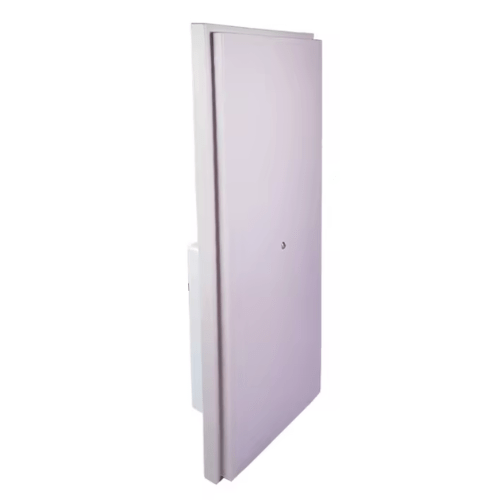

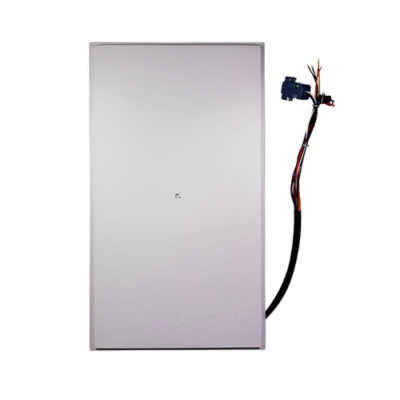

Asset Track Pro long distance UHF RFID reader, which adopts low power consumption and high cost-effective reader module design, has the characteristics of long reading distance, fast recognition speed, many types of interfaces and convenient installation.
It can be widely used in logistics tracking, commodity inventory, product classification, vehicle management, personnel management, asset management, medical system, cold chain management, temperature monitoring, energy monitoring, anti-counterfeiting system and production process control and other applications.
Technical Specifications
| RF Parameters | |
| Working Frequency | 840 MHz to 960 MHz optional, frequency hopping function |
| Protocol | ISO18000-6C |
| Output Power | 30 dBm ± 1 dBm (MAX) |
| Power Output Step | 1 dBm |
| Antenna Polarization | Linear polarization |
| Antenna Gain | 12 dBi |
| Identify Distance | > 32.8 ft (10 m) (related to label and environment) |
| Communication Interface | |
| Cable Interface | RJ45 RS 232/ RS 485 Wiegand 26/34 |
| Radio Interface | 4G (optional) WIFI (optional) |
| Electrical Parameters | |
| Working Voltage | DC 12 V |
| Normal Current | < 100 mA or DC 12 V |
| Maximum Current | < 600 mA or DC 12 V |
| Physical Parameters | |
| Material | ABS, Alufer |
| Working Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Storage Temperature | -40 °F to 176 °F (-40 ℃ to 80 ℃) |
| Working Humidity | 5 % to 95 % (No condensation) |
| Overall Dimensions | 17.32 in x 17.32 in x 2.75 in (440 mm x 440 mm x 70 mm) |
| Weight | 7.05 lb (3.2 kg) |
