Description
Overview

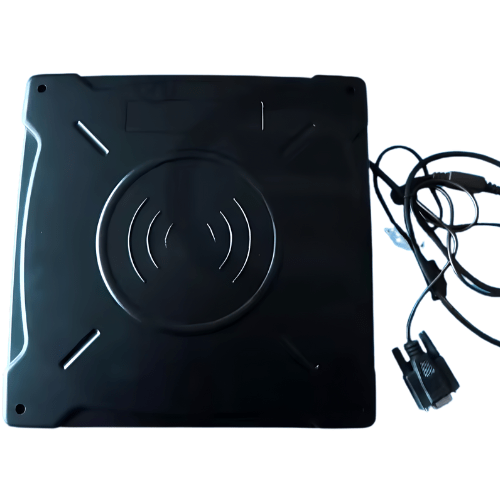

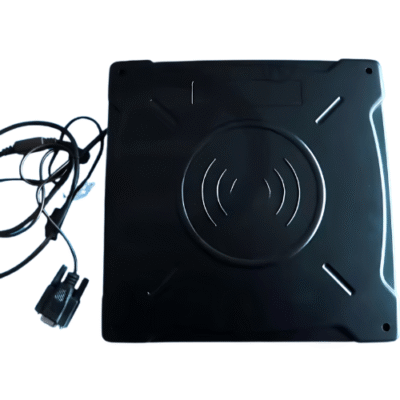

Asset Track Pro 134.2 KHz Middle Range Distance Ear Tag Cattle RFID Reader is a 134.2 KHz RFID long-distance reader that is specially designed for reading animal ID tags with ISO11784 or ISO11785 Standard. After reading the tag, it can directly output the information to the PC in the format of RS232. It is usually used in the livestock’s passages and enclosures to do work like automatic feeding, weighing, milking, and butchering and to do the automatic identification about the tags during the breeding process.
Technical Specifications
| Frequency | 134.2 KHz |
| Reading Distance | 17.72 in (45 cm) |
| Application | RFID ear tag reading |
| Read Standard | FDX-B |
| Color | Black |
| Communication Port | RS232 |
| Dimensions (L × H × T) | 0.236 in × 10.236 in × 1.378 in (260 mm × 260 mm × 35 mm) |
| Operating Voltage | 12 V |
| Electric Current | 360 mA |
