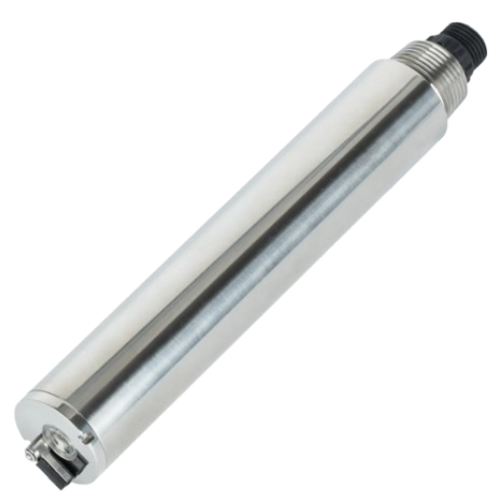

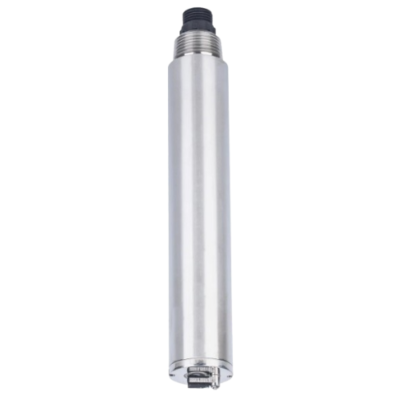

Lora Wan Industrial RS485 Sludge with Concentration Sensor - Asset Track Pro
Lora Wan Industrial RS485 Sludge with Concentration Sensor - Asset Track Pro - Image 2

Lora Wan Industrial RS485 Sludge with Concentration Sensor – Asset Track Pro

This device uses the scattered light principle with a built-in temperature sensor and optical fiber structure for high stability and accurate measurements. It offers a measurement range of 0 to 20 g/L, with automatic temperature compensation and multiple output options, including Modbus and 4-20 mA.

SKU: ATPIGLED-205 Category:

Description

Features

  • Scattered light principle
  • Built-in temperature sensor
  • Optical fibre structure
  • High stability
  • Infrared LED light source
  • Strong resistance to external light interference



Technical Specifications

Measure Range 0 g per L to 20.000 g per L
Resolution 0.001 g per L
Accuracy ± 5 % (depending on sludge homogeneity)
Calibration Mode Two Calibrations
Temperature Compensation Automatic Temperature Compensation (Pt1000)
Output RS – 485 (Modbus per RTU) ,4 mA to 20 mA
The Length of the Cable 16.48 ft (5 meters), other Lengths can be Customized
Power Consumption < 0.3 W at 12 V
Electrical Source 12 V DC to 24 V DC
Protection Grade IP 68 up to 65.62 ft (20 m) depth
Wireless Transmission LoRa or Lora Wan (EU868 MHz,915 MHz), GPRS, 4G, Wi-Fi
Working Conditions 32 °F to 122 °F (0 ºC to 50 ºC)
Storage Temperature 23 °F to 149 °F (- 5 ºC to 65 ºC)
Dimension 19.67 in x 23.62 in (50 cm x 60 cm)
