Description
Overview

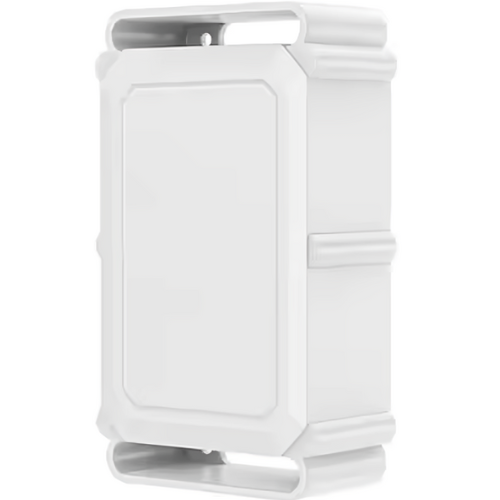

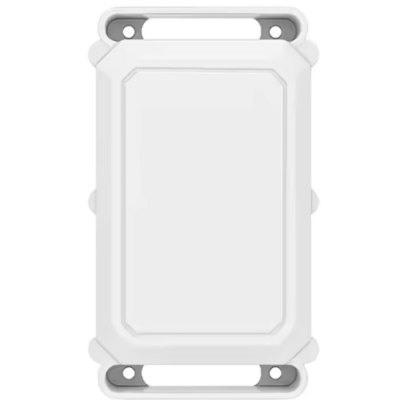

Asset Track Pro LoRaWAN GPS Tracker with built-in acceleration sensor is a wireless asset monitoring product developed based on the standard LoRaWAN® protocol. It features built-in GPS, an acceleration sensor, and an anti-tamper switch sensor. The device automatically obtains GPS positioning data when it moves and includes automatic tamper alarm and alarm prompt sound functions. The LTB01-G Asset Tracker is compact, battery-powered, low-power consuming and easy to install. It is widely used in enterprise asset monitoring, movable property supervision, livestock asset monitoring, bulk commodity supervision, and shared bicycles.
Features
- LoRaWAN standard protocol
- Anti-tamper alarm
- GPS satellite positioning
- IP65 waterproof and dustproof
- Object displacement monitoring
- Available in rechargeable and 8000 mAh battery versions
Technical Specifications
| Battery Capacity | 3.6V, 8000mAh (replaceable) and 3.7V, 2400mAh (rechargeable version) |
| Transmit Power | Max. 19dBm (adjustable) |
| Operating Humidity | 10% RH to 90% RH, non-condensing |
| Power Supply Type | Built-in battery (replaceable) or rechargeable lithium battery (optional) |
| Communication Protocol | Standard LoRaWAN protocol |
| Communication Distance | Over 6561.6 ft (2km) (in open environment) |
| Antenna | Built-in antenna |
| GPS | Positioning accuracy 16.4 ft to 32.8 ft (5m to 10m) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Dimension | 3.54 in x 2.36 in x 1.18 in (9.0 cm x 6.0 cm x 3.0 cm) |
