Description
Overview

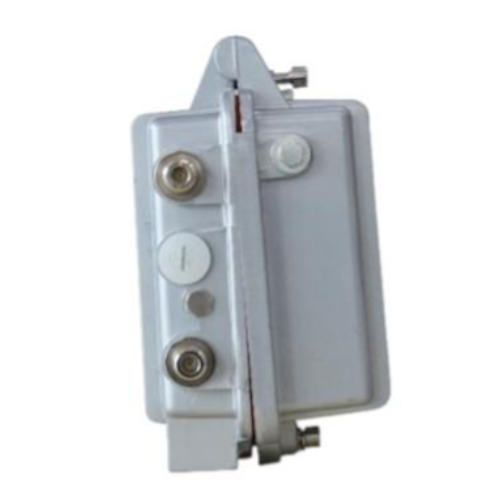

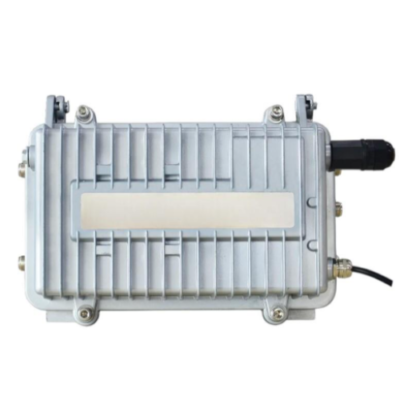

Asset Track Pro’s LoRaWAN Industrial Gateway for Wireless Data Transmission is designed to connect LoRaWAN terminals across multiple application nodes, collecting and transmitting data to cloud servers via 3G/4G cellular networks or wired Ethernet. It supports M2M applications in smart meters, smart sensing, smart grids, smart transportation, industrial automation, and other IoT scenarios.
Features
- Industrial-grade CPU and multi-channel LoRaWAN RF chip
- Aluminum shell with IP65 protection
- Wide power range support (AC 85 to 264V) and optional POE+ input
- WDT watchdog timer and anti-drop mechanism for system stability
- Ethernet interface with built-in 15KV ESD protection
- Power and antenna interfaces with overvoltage, phase-reversal, and lightning protection
- Standard Ethernet, 4G, and WiFi interfaces
- Central management software for configuration and maintenance
- Supports LoRaWAN Class A and Class C, adaptive link rates, and multiple WiFi encryption modes
Technical Specifications
| Network Structure | Simple Star Network Topology |
| LoRaWAN Protocol | Class A, Class C |
| Communication Distance | 5.6 mi (9 km) at SF12 |
| Reference Floor Penetration | 18 floors at SF12 |
| Output Power | 26 ±1 dBm |
| Operating Frequency | EU433, EU863-870, US902-928, AU915-928, AS923, KR920-923 |
| Antenna Max Sensitivity | -142 dBm at LoRa |
| Bandwidth | 125 kHz, 250 kHz or 500 kHz |
| Communication Channels | Uplink: 8, Downlink: 1 |
| Communication Rate | Adaptive link rate |
| Communication Mode | Half-duplex |
| Working Mode | Supports sending and receiving different frequencies or same frequency |
| Reporting Server Mode | Ethernet, 4G |
| Wireless Management | WiFi management and upgrade |
| Cellular Standard | LTE FDD/TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE |
| Theoretical Bandwidth | LTE FDD: DL 100 Mbps / UL 50 Mbps
LTE TDD: DL 61 Mbps / UL 18 Mbps DC-HSPA+: DL 42 Mbps / UL 5.76 Mbps TD-HSPA+: DL 4.2 Mbps / UL 2.2 Mbps EVDO Rev. A: DL 3.1 Mbps / UL 1.8 Mbps |
| Transmit Power | < 23 dBm |
| Receive Sensitivity | < -97 dBm |
| WiFi Standard/Frequency | IEEE802.11 b/g/n |
| WiFi Bandwidth | IEEE802.11b/g: Max 54 Mbps
IEEE802.11n: Max 150 Mbps |
| WiFi Security | WEP, WPA, WPA2, optional WPS, MAC filtering |
| WiFi Transmit Power | 20 dBm (11n), 24 dBm (11g), 26 dBm (11b) |
| WiFi Receive Sensitivity | < -72 dBm at 54 Mbps |
| CPU | Industrial 32-bit communication processor |
| Flash | 32 MB |
| DRAM | 128 MB |
| Power Supply | AC 220V, built-in overvoltage and phase-reversal protection |
| POE+ | 802.3af/at, 25W max |
| WAN (POE+) | WAN/LAN configurable, 10/100M Ethernet, MDI/MDIX adaptive, 1.5KV isolation |
| Console | Serial port |
| Reset | Factory reset button |
| TF Card | 8GB/32GB optional |
| SIM Card | 1 |
| Antenna Interfaces | LoRa, WiFi, 4G, GPS (4 total) |
| LED Indicators | PWR, SYS, WiFi, NC, Sig, LoRa, Online, NC |
| Power Consumption | Standby ≤ 120 mA at 12V,
Tx ≤ 460 mA at 12V (with 4G) Tx ≤ 243 mA at 12V (without 4G) Rx ≤ 120 mA at 12V |
| Installation | Wall or pole mount |
| Shell | Aluminum, IP65 |
| Operating Temperature | -40 to +185 ºF (-35 to +75 ºC) |
| Storage Temperature | -40 to +257 ºF (-40 to +85 ºC) |
| Relative Humidity | 95% non-condensing |
| Dimensions | 11.4 x 8.6 x 4.5 in (289.4 x 217.5 x 115.0 mm) |
| Weight | 5.95 lb (2.7 kg) |
