Description
Overview

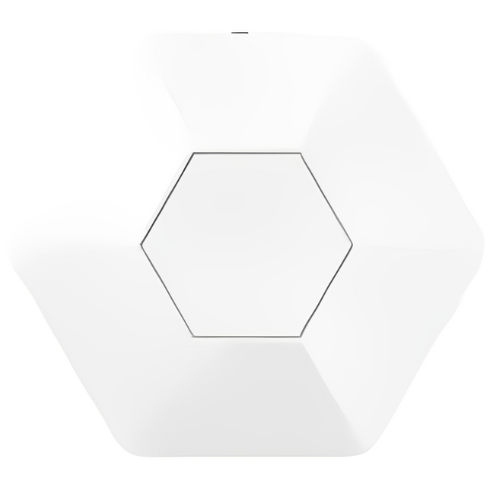

Asset Track Pro’s LoRaWAN integrating device with temperature and humidity sensor is a Bluetooth LoRaWAN gateway integrating LoRa and Bluetooth wireless Communication. This device can scan Bluetooth Beacon data and send data to LoRaWAN Based gateway, and then upload to server, so as to realize personnel tracking, indoor positioning, asset monitoring and environmental monitoring.
Features
- Ultra-low power consumption
- Superior wireless performance
- Support temperature and humidity sensor
- Low battery reminder
Technical Specifications
| Material | ABS |
| Lora Protocol | LoRaWAN V1.0.3 |
| Lora Frequency | CN 470 MHz or EU 868 MHz or AU 915 MHz or US 915 MHz or AS 923 MHz or IN 865 MHz or KR 920 MHz or EU 433 MHz or CN 779 MHz |
| LoRa Communication Distance | 2.4 mi (4 km) (in urban open space) |
| Bluetooth | BLE 5.0 |
| Battery | Built-in 4200 mAH Rechargeable Battery |
| Operating Temperature | – 4 °F to 140 °F (- 20 °C to 60 °C) |
| Net Weight | 5.82 oz (165 g) |
| Dimensions | 4.83 in x 4.29 in x 1.4 in (122.7 mm x 109 mm x 36 mm) |
