Description
Features
- Strong anti interference ability

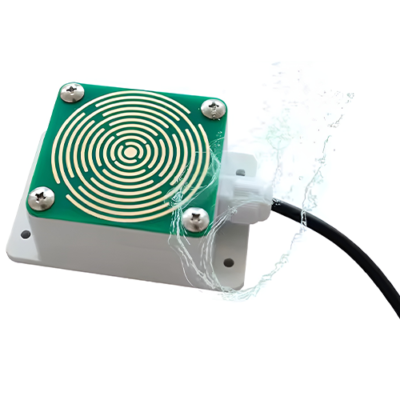

- Outlet waterproof design
- Long transmission distance

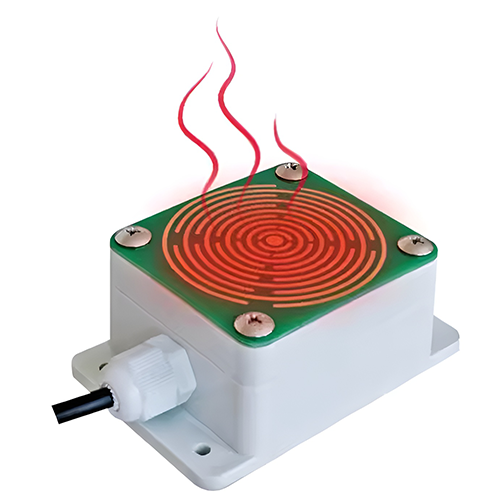

- Automatic heating function
Technical Specifications
| Power Supply | 12 V DC to 24 V DC |
| Output | RS 485, MODBUS communication protocol 0 V to 2 V, 0 V to 5 V, 0 V to 10 V; 4 mA to 20 mA Relay output |
| Load Capacity | AC 220 V 1 A; DC 24 V 2 A |
| Standard Cable Length | 6.56 ft (2 m) 3-wire system (analog signal); 6.56 ft (2 m) 4-wire system (relay switch, RS485) |
| The Farthest Lead Length | RS485 3280.84 ft (1000 m) |
| Protection Level | IP68 |
| Wireless Transmission | LoRa or LoRaWAN (EU 868 MHz, 915 MHz, 434 MHz), GPRS, 4 G, Wi-Fi |
| Stand Pole | 4.92 ft (1.5 m), 6.56 ft (2 m), 9.84 ft (3 m) hight, the other height can be customized |
| Equiment Case | Stainless steel waterproof |
| Ground Cage | Can supply the matched ground cage to buried in the ground |
| Cross Arm For The Install | Optional (used in thunderstorm places) |
| LED Display Screen | Optional |
| 7 In Touch Screen | Optional |
| Surveillance Cameras | Optional |
| Solar Panels | Power can be customized |
| Solar Controller | Can provide matched controller |
| Working Humidity | 0 % RH to 100 % RH |
| Storage Conditions | -40 °F to 140°F (-40 °C to 60 °C) |
| Operating Temperature | -22 °F to 158°F (-30 °C to 70 °C) |
| Weight | 10.58 oz (300 g) |
| Dimensions | 4.72 in x 3.15 in x 2.36 in (89 mm x 60 mm x 38 mm) |
