Description
Technical Specifications

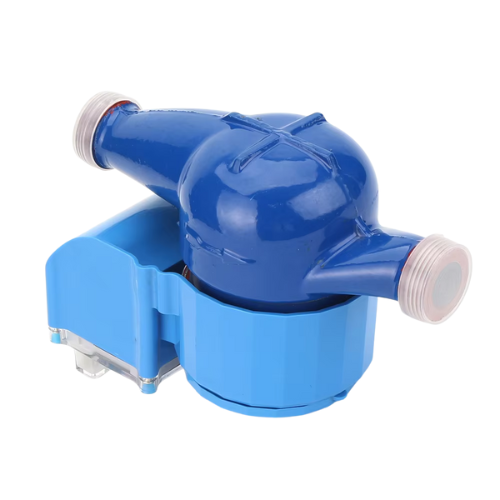

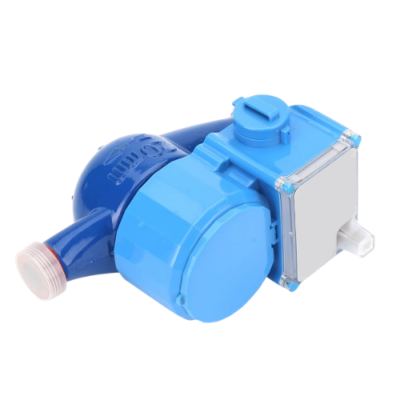

| Type | Wet or dry dial, multi-beam water meter, LoRaWAN |
| Flow Rate | 2.5 to 10 m³/h |
| Measurement Range | 0.001 to 99,999 |
| Connectivity | Threaded |
| Working Voltage | DC 12V |
| Battery Capacity | 3.6V lithium manganese battery |
| Water Pressure | 0.03 to 1.6 MPa |
| Pressure Loss | 0.063 MPa |
| Installation Method | Horizontal installation |
| Protection Class | IP68 |
| Temperature | 32 to 86 °F (0 to 30 °C) |
| Size | DN15 to DN32 mm (0.59 to 1.26 in) |
| Control Box Material | ABS |
| Material | Pure copper |
