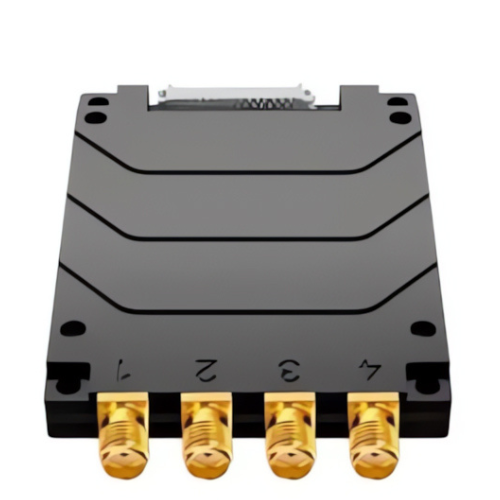

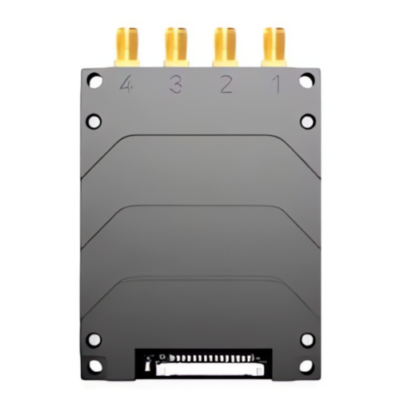

Low Power UHF RFID Reader Module with Impinj E710 Chip – Asset Track Pro

Efficient long-range UHF RFID reader module with low power Impinj E710 chip, supporting C# code and Arduino for versatile applications.

SKU: ATPURR-127 Category:

Description

Technical Specifications

Frequency 860 MHz to 960 MHz
Protocol ISO 18000 to 6C
Output Power 33 dBm (Adjustable)
Read Range 0 into 984.25 in (0 m to 25 m)
Interface TTL
Power Supply Single +5 V DC
Key Word Impinj E710 chip
Dimension 2.66 in × 2.01 in × 0.31 in (67.5 mm × 51 mm × 7.9 mm)
Support Four External Antennae with MMCX-J socket
Advantage Can Continue Work 24 hours X365 days
