Description
Overview

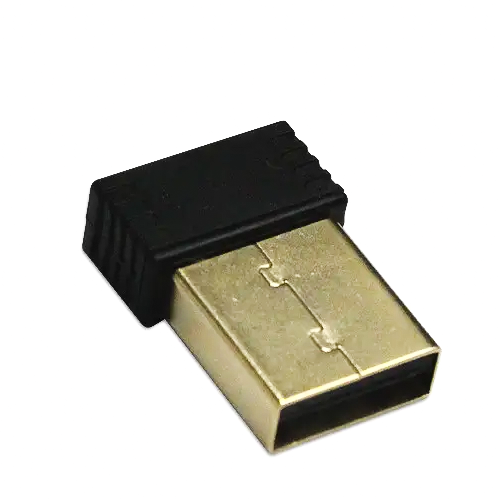

Asset Track Pro Mini BLE USB Beacon NRF52810 iBeacon 2-in-1 USB Bluetooth is a compact Bluetooth module designed by Chengdu Ebyte, featuring a USB RF connector and a high-performance PCB antenna. Supporting BLE 4.0, it operates in the 2.402 GHz to 2.480 GHz frequency range with a transmission power of 0dBm and a range of up to 60 meters. This module offers reliable wireless connectivity in a small, efficient design, ideal for various Bluetooth applications.
Features
- Small USB BLE beacon device
- Supports Eddystone and iBeacon protocols
- BLE 5.0 technology
- Long-range and stable signals
- Configurable via app
Applications
- Indoor navigation systems
- Proximity marketing campaigns
- Asset tracking and monitoring
- Location-based services
Technical Specifications
| Chip | Nordic NRF52 |
| Operation Voltage | 2.0 to 3.6 V DC |
| Operation Frequency | 2400 to 2483.5 MHz |
| Frequency Error | ± 20 kHz |
| Modulation | Q-QPSK |
| Standby Current | 12 μA |
| Output Power | 4 dBm to -40 dBm (programmable) |
| Receiving Sensitivity | -93 dBm |
| Antenna | 50 ohm |
| Onboard Chipset | Nordic NRF52 |
| Application | iOS 7.0 or 8.0 with tool app & Android with SDK |
| Powered By | USB adapter |
| Certificates | CE, FCC, RoHS, MFI |
| OEM | Accepted |
| Color | Customized |
| Transmission Distance | 131.23 ft (40 m), BER < 0.1%, open space |
| BLE Range | 131.23 ft (40 m) in open air |
| Housing Size | 0.75 in x 0.59 in x 0.24 in (19 mm x 15 mm x 6 mm) |
| Weight | 0.18 oz (5 g) |
