Description
Features
- Barebone PCs do not include an operating system
- Full-fledged desktop performance

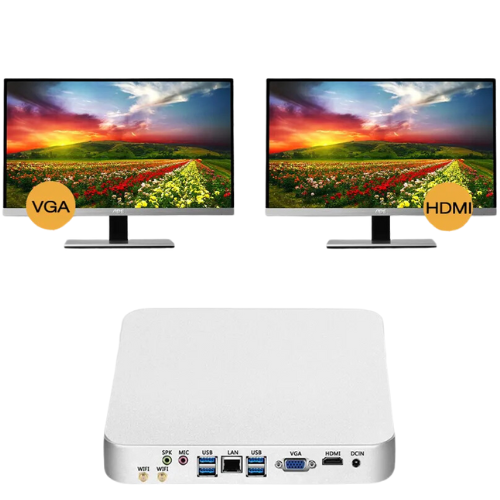

- Support dual display configuration by multiple interface: H-D
- Support 1 x mSATA
- With 6 X USB
- Support automatic start when plug in power
- Support wake-up on Lan
- OS support Win7 or Win 8 or Linux
- With fan cooling, low power consumption
Technical Specifications
| Onboard CPU | Processor 1037U (2M Cache, 1.80 GHz) Processor 2117U (2M Cache, 1.80 GHz) Processor 1007U (2M Cache, 1.80 GHz) Core i5 3317U Processor (3M Cache, 1.70 GHz up to 2.6GHz) Core i5 4200U Processor (3M Cache, 1.60 GHz up to 2.6GHz) Core i7 4500U Processor (4M Cache, 1.80 GHz up to 3.0GHz) Core i7 1255U Processor (3M Cache, 1.70 GHz up to 3.50GHz) |
| Memory | DDR3 L 1.35V i7 1255U: Dual channel DDR4 memory, max up to 64GB |
| Hard Disk | Supports 1 x mSATA SSD Hard disk i7 1255U: support M.2 NVME SSD |
| Network Card | RTL 8111EL 1000 Base T LAN |
| Audio Card | ALC89 Panther Point HDA |
| Front Panel Connectors | Power ON or OFF HDD LED + PW LED 2 x USB Ports |
| Internal Connectors | 1 x Mini PECI port 1 x SO-DIMM DDR3 1 x SATA Port 1 x SATA, 1 x MINI-SATA |

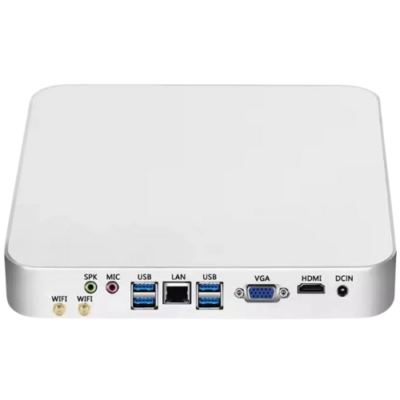

| Back Panel Connectors | 1 × DC 12V input 1 × H-D 1 × LAN (RJ-45 Ports 10 or 100 or 1000 Mbps Adaptive) 4 × USB 1 × MIC 1 × SPK 2 x WIFI antennas ports |
| RAM (optional) | 2GB or 4GB or 8GB (DDR3L to 1333 or 1600) |
| SDD (optional) | 16G, 32G, 64G, 128G, 256G, 512G mSATA |
| Power Consumption | TDP 15W |
| Case Colour | Slivery (other colour can be customized) |
| Power | Input: DC100 to 240V AC or 50 to 60Hz Output: DC 12V or 5A |
| Package Content | 1 x Mini PC 1 x Power Adapter 1x VESA-mount (free gift) 2x Wi-Fi Antennas (optional) 1x Wi-Fi Module (optional) 1x User Manual |
| Dimension | 7.76 in X 7.76 in X 1.34 in (19.7 x 19.7 x 3.4cm) |
| Weight | 3.31 lb (1.5KG) |
