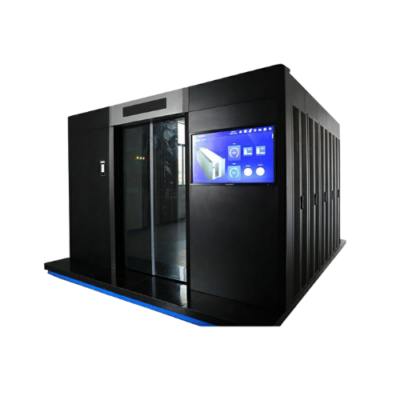

| Module Type |
Micro Module |
| Cabinets per Module |
Single channel ≤ 24; Double channel ≤ 48 |
| Power Supply |
208V / 380V / 400V / 415V DC/AC, 50 / 60 Hz, 3 Ph + N + PE |
| Max IT Load per Module |
125 kW (integrated UPS) / 145 kW (integrated PDC) / 235 kW (precision PDC) |
| Cable Routing |
Routed in/out through the top of cabinets |
| Installation |
Raised floor |
| Protection Level |
IP20 |
| Cabinet Capacity |
42U / 47U |
| Cabinet Dimensions (H × W × D) |
2000 × 600/800 × 1200 mm → 78.74 × 23.62/31.50 × 47.24 in2000 × 600/800 × 1100 mm → 78.74 × 23.62/31.50 × 43.31 in2200 × 600/800 × 1200 mm → 86.61 × 23.62/31.50 × 47.24 in |
| Air Conditioner — Installation |
In-row or vertical at one end |
| Refrigeration System |
Direct expansion air cooling / chilled water / cooling water |
| Cooling Capacity |
Optional |
| In-Row A/C Dimensions (H × W) |
2000 × 300 mm → 78.74 × 11.81 in2000 × 600 mm → 78.74 × 23.62 in |
| In-Row A/C Power Supply |
208V / 380V ~ 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Refrigerant |
R410A / R407C |
| Integrated UPS — Input Voltage |
208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Integrated UPS — Input |
250A / 400A MCCB |
| Integrated UPS — Input Power Factor |
Full load > 0.99; Half load > 0.98 |
| Integrated UPS — Output Power Factor |
1 |
| Integrated UPS — Rated Capacity |
25 kVA ~ 125 kVA |
| Integrated UPS — Output |
IT: 40A/1P × 24 × 2; A/C: 40A or 63A/3P × 8; Lighting: 10A/1P × 3 |
| Integrated UPS — Efficiency |
≥ 96 % |
| Integrated PDC — Input Voltage |
380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Integrated PDC — Input |
IT: 160A/250A MCCB; A/C: 160A/250A MCCB |
| Integrated PDC — Rated Input Current |
IT: 160A / 250A; A/C: 160A / 250A |
| Integrated PDC — Output |
IT: 32A/1P × 2 per cabinet; A/C: 40A or 63A/3P per; Lighting: 10A/1P |
| Precision PDC — Input Voltage |
208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Precision PDC — Input |
160A / 250A / 400A MCCB |
| Precision PDC — Output |
32A/1P, max 144 routes |
| Smart Bus Bar — Input Voltage |
208V / 380V / 400V / 415V AC, 50 / 60 Hz, 3 Ph + N + PE |
| Smart Bus Bar — Input |
160A / 250A MCCB |
| Smart Bus Bar — Output |
32A/1P |
| Single Channel Dimensions (W × H) |
2200 × 2300 mm → 86.61 × 90.55 in2200 × 2400 mm → 86.61 × 94.49 in |
| Double Channel Dimensions (W × H) |
3200 × 2300 mm → 125.98 × 90.55 in3600 × 2400 mm → 141.73 × 94.49 in |
