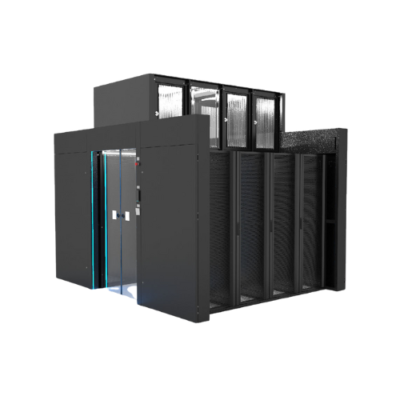

| Design Specifications |
Standard width: 14.17 in (360 mm); height: 78.74 in / 90.55 in (2000 mm / 2300 mm); length ≤ 49.21 ft (15 m); supports customized needs |
| Server Rack Capacity |
Maximum: 48 racks |
| Single Rack Average Reference Power |
3 kW – 6 kW (customizable) |
| Recommended Installation Method |
Rack dedicated base |
| Power Supply Support Structure |
2× UPS power lines & 2× AC lines, or 1× UPS power line & 1× AC line (customizable) |
| Access Control System |
Manual or electric sliding doors; supports face recognition, fingerprint, password, and card access |
| Skylight System |
Automatic rotation; supports fire-fighting linkage control; optional auto reset |
| Lighting |
Energy-saving LED with human body sensing function |
| Atmosphere Light System |
Intelligent alarm linkage with color change and light warning |
| Server Rack Static Loading Capacity |
1500 kg / 1800 kg (3307 lb / 3968 lb) |
| Quality Standards |
IEC298-2, GB/T3047.2-92 |
| Power Distribution – Integrated UPS & Battery |
Capacity up to 150 kVA integrated; >200 kVA independent; single module 25 / 40 / 50 kVA |
| Frequency Range |
40 Hz – 70 Hz |
| Input Voltage Range |
300 V – 460 V AC |
| Output Voltage |
380 / 400 / 415 V AC, 50 – 60 Hz, 3Ph+N+PE |
| Battery Rack |
Rack-mounted with cooling module |
| Backup Time |
15 min – 30 min or customizable |
| Battery Quantity |
16 – 40 × 12 V lead-acid batteries |
| Battery Monitoring |
Internal resistance, voltage, temperature monitoring |
| Power Distribution – Head Rack |
Input voltage 360 – 415 V AC; input switch up to 630 A |
| Input Method |
Single/Dual MCCB, PC/CB level ATS |
| Output Method |
IT load, air conditioning load, other power loads |
| Power Distribution Monitoring |
Voltage, current, air switch status, real-time power, effective power, and energy |
| Alarm Functions |
Over/under-voltage, over-current, abnormal frequency, single-channel fault, three-phase unbalance |
| Refrigerating System – Integrated AC |
Cooling capacity 25 kW / 40 kW; Sensible heat ratio ≥ 0.99 |
| Rack Size (Cooling) |
11.81 in × 47.24 in × 78.74 in (300 mm × 1200 mm × 2000 mm) — 25 kW23.62 in × 47.24 in × 78.74 in (600 mm × 1200 mm × 2000 mm) — 40 kW |
| Refrigerant |
R410A |
| Monitoring System |
13.3 in industrial control touch display |
| Monitoring Points |
Temperature, humidity, smoke, camera, sound/light alarm, SMS, water leakage |
| Monitoring Collection |
Standard 1U rack-mounted unit; supports UPS, air conditioner, battery, power cabinet monitoring; dual network ports; data export; SD/hard disk expansion; northbound interface; access control; video system; dual power supply expansion |
| Cabinet Standard |
19 in |
| Front Door |
Tempered glass |
| Capacity |
3968 lb (1800 kg) |
| Dimensions (Width × Height) |
141.73 in × 98.43 in (3600 mm × 2500 mm) |
