Description
Overview

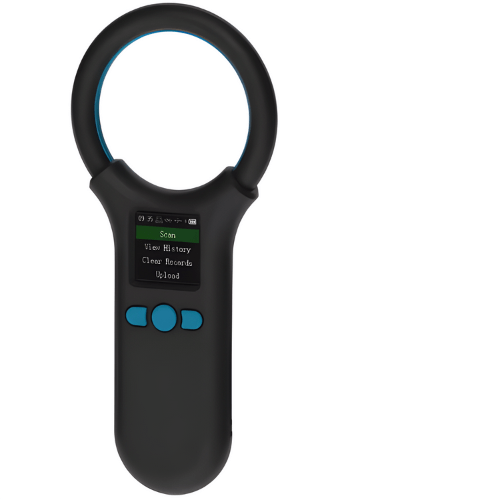

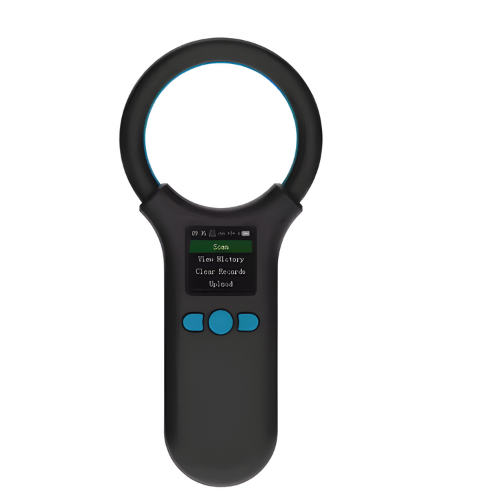

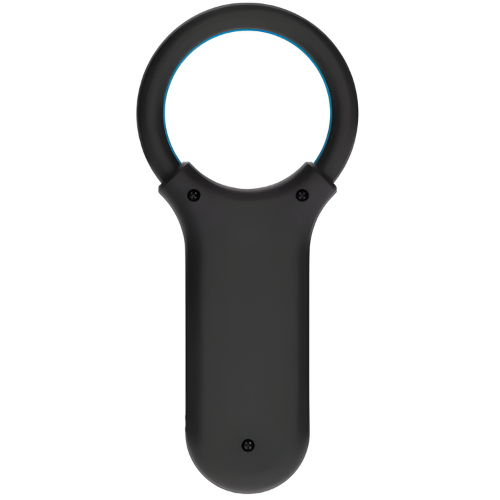

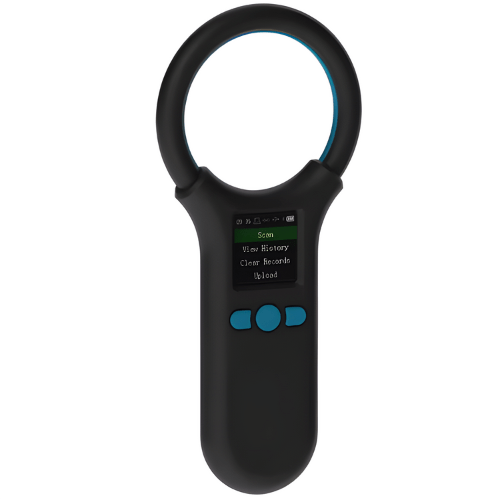

Asset Track Pro RFID Reader, featuring support for EMID, FDX-B, and other formats. The 1.44″ TFT display ensures clear visibility of label numbers and device status. With built-in storage for up to 500 label information, it offers seamless data management. Easily upload data via USB cable or wirelessly through 2.4 G or Bluetooth, enabling real-time updates for efficient operations.
Technical Specifications
| Operating Frequency | 134.2 KHz or 125 KHz |
| Label Format | EMID, FDX-B (ISO11784 or 85) |
| Read And Write Distance | 0.08 in to 0.47 in (2 mm to 12 mm) glass tube label>3.15 in (8 cm) 1.18 in (30 mm) animal ear tag> 7.87 in (20 cm) (related to label performance) |
| Standards | ISO11784 or ISO11785 |
| Wireless Distance | 0 ft to 262.47 ft (0 m to 80 m) （Accessibility） |
| Bluetooth Distance | 0 ft to 65.62 ft (0 m to 20 m) （Accessibility） |
| Signal Indication | 1.44-inch TFT LCD screen, buzzer |
| Electricity | 3.7 V (800 mAh lithium battery) |
| Storage Capacity | 500 messages |
| Communication Interfaces | USB2.0, Wireless 2.4G, Bluetooth (optional) |
