| Chipset |
SX1276 |
| Application |
Positioning and Navigation |
| Type |
BLE Module |
| Function |
IoT System |
| Bluetooth Protocol |
Bluetooth 5.0 |
| Band |
US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864, ID920, KR920, IN865, KZ865, CLAA, CN470, CN470-Ali |
| Maximum RF Power |
20dBm |
| Access Quantity |
>500 in one LoRa gateway |
| Data Rate (bps) |
30 to 30K |
| Beacon Access Quantity |
100 beacon messages can be received within 1s, Maximum of 15 beacon messages at one single LoRa communication |
| Certification |
CE, FCC, RCM, BQB |
| Peak Current |
Max. 140mA in transmit mode |
| Ingress Protection |
IP66 |
| Positioning Precision |
3 metres |
| Encryption |
AES128, X509 |
| Battery |
5.300 mAh |
| Bluetooth Positioning |
Approx. 150,000 times |
| Standby Current |
25 μA |
| Max. Current |
300 mA |

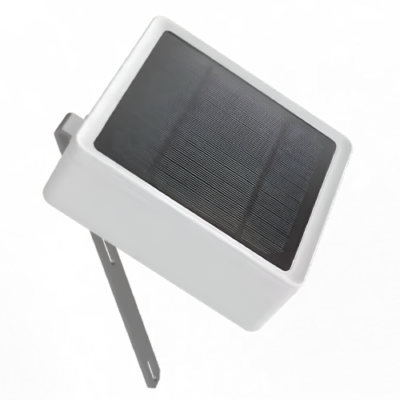

| Solar Panel |
3 W |
| Max. Charging Current |
500 mA |
| Charging Rate |
Max. 1500 mAh each day |
| Battery Life |
1 month @ 10s Bluetooth receiving duration and 60 report interval |
| Certification |
CE, FCC, RCM |
| Operating Temperature |
-40 °F to 185 °F ( -40 ℃ to +85 ℃ ) |
| Weight |
5.29 oz (150 g) |
| Dimension |
6.30 in × 6.30 in × 2.17 in (160 mm x 160 mm x 55 mm) |
