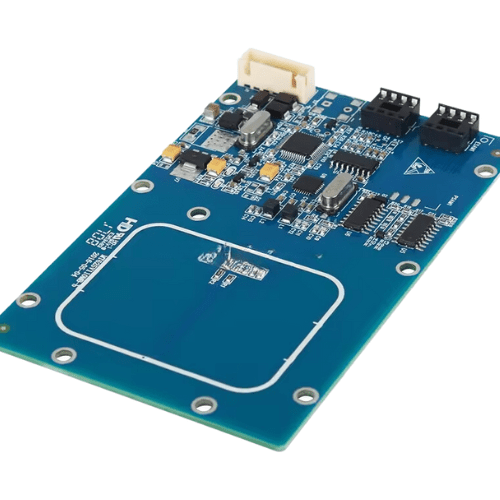

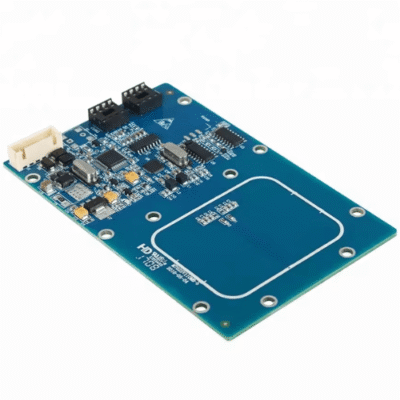

Description
Features
- Supports contactless IC card.
- Supports S 50, S 70 cards.
- Supports PSAM, ESAM cards.
- Customized for charging points.
- Customized for financial applications.
- Various custom designs are available.
- Software updates via RS 232.
- Designed antenna for installation.
- Temperature-proof installation dimensions.
Technical Specifications
| Status Display | LED indication or Buzzer |
| Interface | RS 232 or TTL (UART) |
| Baud Rate | 9600 bits per second or 38400 bits per second or 57600 bits per second or 115200 bits per second |
| Frequency | 13.56 MHz |
| Antenna | PCB antenna |
| Data Storage | 4000 bytes |
| Communication Speed | 106 Kbit |
| Current | < 25 mA |
| Power Supply | DC 5 V or 8 V to 15 V |
| Reading Distance | 1.57 in to 3.14 in (0.13 ft to 0.26 ft) |
| Protocol | ISO 14443 A and B and Mifare |
| Operating Temperature | -40 °F to 149 °F (-40 ℃ to 65 ℃) |
| Weight | 1.13 oz (32 g) |
