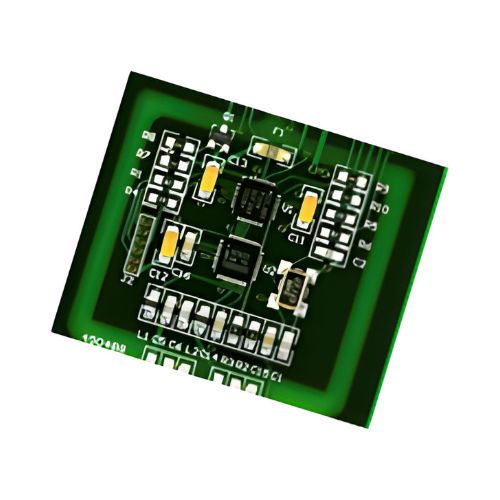

NFC RFID USB Module with Integrated Antenna, ISO 14443 A Compliance – Asset Track Pro

Compact and lightweight RFID module with a 13.56 MHz NFC solution. Features integrated antenna, USB interface, ISO 14443 A compatibility, and 4.5V-5.5V power.

SKU: ATPHMOD-107 Category:

Description

Technical Specifications

Antenna Integrated
Interface USB
Frequency 13.56 MHz
Current < 80 mA
Power Supply 4.5 V to 5.5 V
Operating Distance 2.36 in (0.19 ft)
Protocol ISO 14443 A
Operating Temperature 14 °F to 158 °F (-10 ℃ to 70 ℃)
Storage Temperature -4 °F to 185 °F (-20 ℃ to 85 ℃)
Dimensions 2.55 in x 1.18 in x 0.27 in (65 mm x 46 mm x 7 mm)
Weight 0.07 oz (2 g)
