Description
Technical Specifications
| CPU | Inter Celeron J1900, quad core, 2.0 Ghz, fanless (Core i3, Core i5 optional) |
| Memory | 2GB DDR3, (Max. 8G) |
| Hard Drive Capacity | 32G SSD or 320G HDD |
| Hard Drive Optional | SSD: 32 GB, 64 GB, 128 GB, 256 GB
HDD 320 GB, 500 GB, 1 TB |
| Network | 1 × Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |

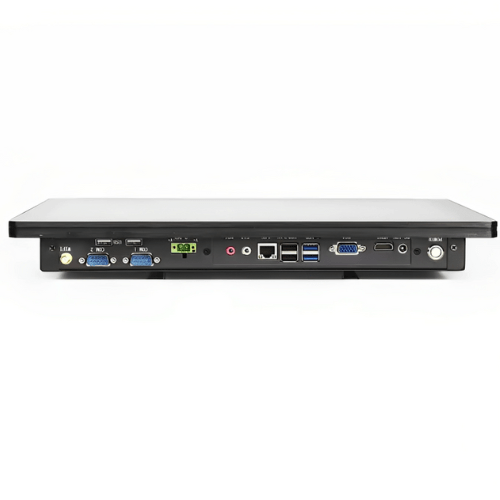

| I/O Interface | 1 x HDMI/VGA/LAN, 4 x USB/Audio Out/Power DC |
| Operation System | Preinstall test version Windows 7/8/10, Linux/Android |
| Image Format | Support BMP, JPEG, PNG, GIF |
| Panel size | 7 in, 8 in, 10 in, 13 in, 15.6 in/19 in/21 in, 24 in in Customizable |
| Resolution | 1920 x 1080 or 1366 x 768 |
| Brightness (cd/m²) | 250 cd/m2 |
| Response time | 15 ms |
| Contrast ratio | 1000;1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Touch Type | 10 points projective Capacitive touch optional |
| Touch Interface | USB |
| Response time | <8 ms |
| Luminousness | 75% to 85% |
| External Power Supply | AC 100 to 240V |
| Working voltage | DC 12 V |
| Power consumption | ≤18W |
| Temperature range | operating 14 °F to 140 °F (-10 °C to 60 °C), storage: -4 °F to 158 °F (-20 °C to 70 °C) |
| Relative humidity | 5% to 95% at 104 °F (40 ° C), non-condensing |
| Vibration | 5 Hz to 500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Accessories | Power adapter, Wifi antenna |
| Mounting (options) | provide wall brackets for wall-mounting, VESA 3.94 in x 3.94 in (100 mm × 100 mm)
provide Floor standing to support the PC |
