Description
Overview

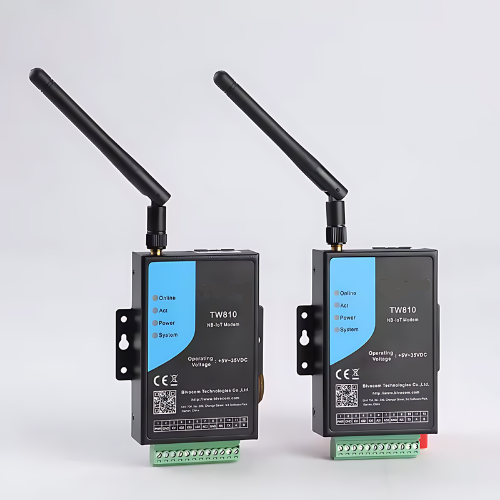

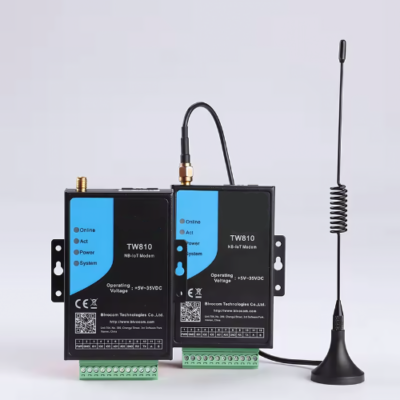

Asset Track Pro industrial wireless IP Modem (Also called DTU, Data Transfer Unit), designed to fully meet the needs of industrial standards and industrial users. It adopts high-powered industrial 32-bits CPU, multi-layer software detection and hardware protection mechanism to ensure reliability and stability of the device. It supports worldwide carrier 4G/3G cellular network FDD-LTE, TD-LTE, and WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS.
Features
- SMS backup, data will be transferred by SMS when TCP/UDP disconnects
- Rich online and offline trigger modes: SMB, Ring, Data (Sent through serial port)
- Hardware and software auto inspection technology, enable operation fault auto repairing
Technical Specifications
| Interface | 1x RS232, 1 x RS485, 5x I/O, 1 x SIM/UIM |
| Power Range | DC: 5 V to 35 V |
| Standard Power | DC: 12 V/1.5 A |
| Housing | Metal, IP30 |
| Dimensions | 3.58 in x2.30 in x0.87 in (91×58.5×22 mm) |
| Weight | 0.45 lb (208 g) |
| Operating Temperature | -31 ºF to +167 ºF (-35 ºC to +75 ºC ) |
